Mercury Cruise Control


You are responsible for the safe and prudent operation of your vessel. Mercury® Cruise Control does not steer the boat for you and does not avoid navigational hazards. Failure to safely operate your boat could result in an accident causing property damage, serious personal injury, or death.

When connected to a compatible Mercury engine, you can set and adjust the cruise-control function using the chartplotter.

Enabling the Mercury Cruise Control Overlay

  1. From the page where you want to add the overlay, select Options > Edit Overlays.
    TIP: You can also select Toolbars from the menu bar to quickly change the overlays.
  2. Select Top Bar or Bottom Bar.
  3. Select Mercury Cruise.
  4. Select Back.

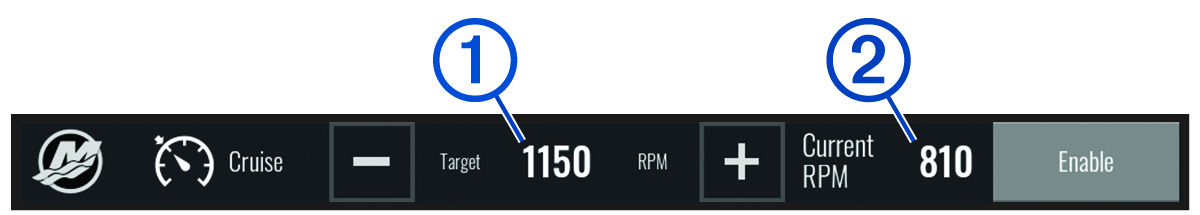

Mercury Cruise Control Overlay

Mercury control bar with callouts

Minus symbol

Select to decrease the target speed

Callout number 1

Target speed

Plus symbol

Select to increase the target speed

Callout number 2

Actual speed


Select to engage the cruise control


Select to disengage the cruise control
