Defining a Partial Guard Zone

You can define the boundaries of a guard zone that does not completely surround your boat.

  1. From a radar screen, select MENU > Radar Options > Guard Zones.
  2. Select Guard Zone 1 or Guard Zone 2, and then select Menu button.
  3. Use the arrow keys to move location of the outer guard-zone corner Callout number 1.

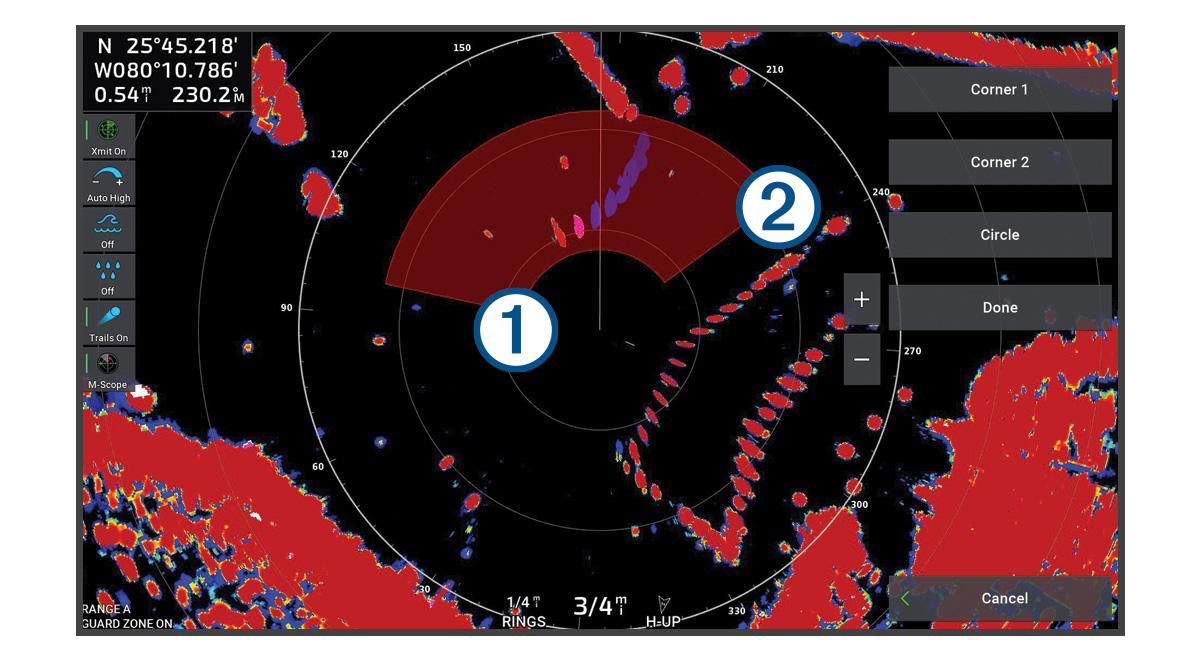

    Radar guard zone setup
  4. Press SELECT.
  5. Select Corner 2.
  6. Use the arrow keys to move the inner guard-zone corner Callout number 2 to define the width of the guard zone.
  7. Select Done.
