Customizing the Data Overlays

You can customize the data in the data overlays shown on a screen.

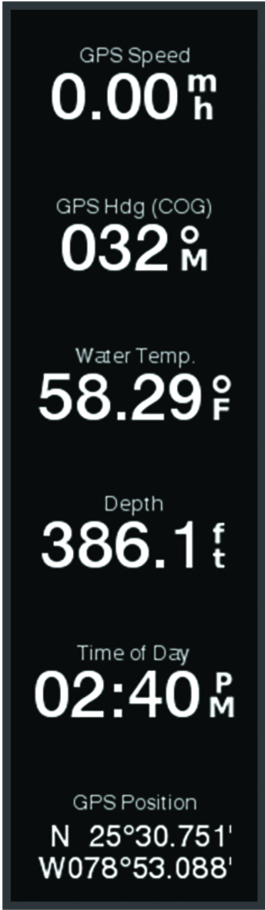

Data fields
  1. Select an option based on the type of screen you are viewing:
    • From a full screen view, select MENU > Edit Overlays.

    • From a combination screen, select MENU > Edit Combo > Overlays.

    • From a SmartMode™ screen, select MENU > Edit Layout > Overlays.

  2. Select an item to customize the data and data bar:
    • To show the data overlays, select Data, select the location, and select BACK.

    • To change the data shown in an overlay box, select the overlay box, select the new data to show, and select BACK.

    • To customize the information shown when navigating, select Navigation, and select an option.

    • To turn on other data bars, select Top Bar or Bottom Bar, and select the necessary options.

  3. Select Done.
