Tide and Current Overlays

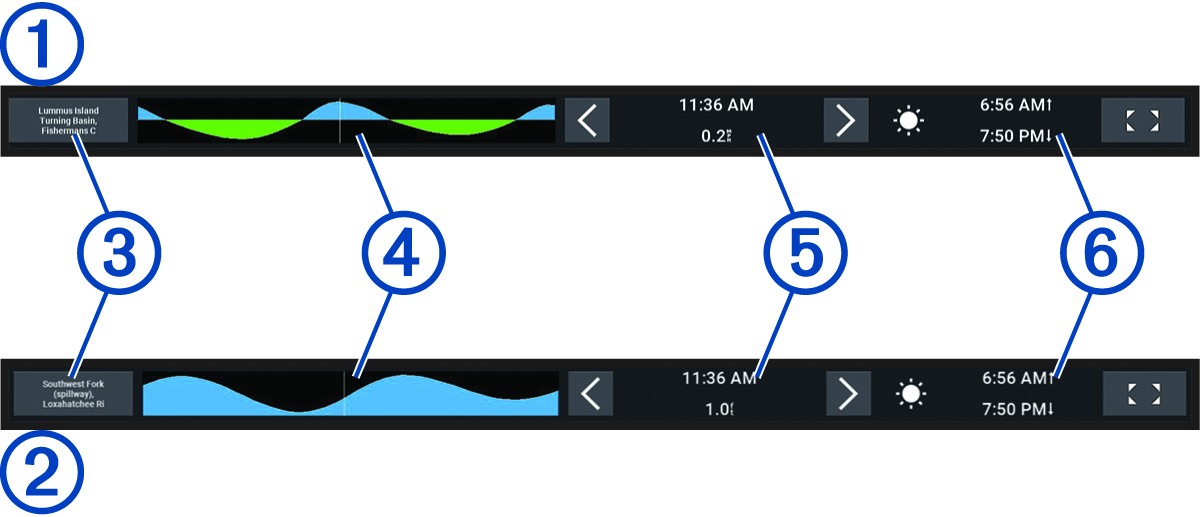

Tide and current bar with callouts

Callout number 1

Tide station overlay bar.

Callout number 2

Current station overlay bar.

Callout number 3

Name of the selected tide or current station.

Select to change to a different tide or current station.

Callout number 4

Tide or current station graph.

Callout number 5

Present time, indicated on the tide or current station graph as a white line.

You can select Left arrow symbol and Right arrow symbol to adjust the time on the tide or current station graph.

Callout number 6

Present sunrise and sunset times.

Full screen symbol

Select to open the tide or current station information page.

Adding Tide and Current Overlays

  1. From the page where you want to add the overlay, select MENU > Edit Overlays.
  2. Select Top Bar or Bottom Bar.
  3. Select Tides or Currents.
