LiveVü Layer

You can enable the LiveVü Layer view on the RealVü 3D Historical sonar view only when using a compatible transducer, such as a Panoptix™ PS70-TH.

The LiveVü Layer view adds the LiveVü down view to the RealVü 3D Historical sonar view.

To enable the LiveVü Layer view on the RealVü 3D Historical sonar view, select MENU > LiveVü Layer.

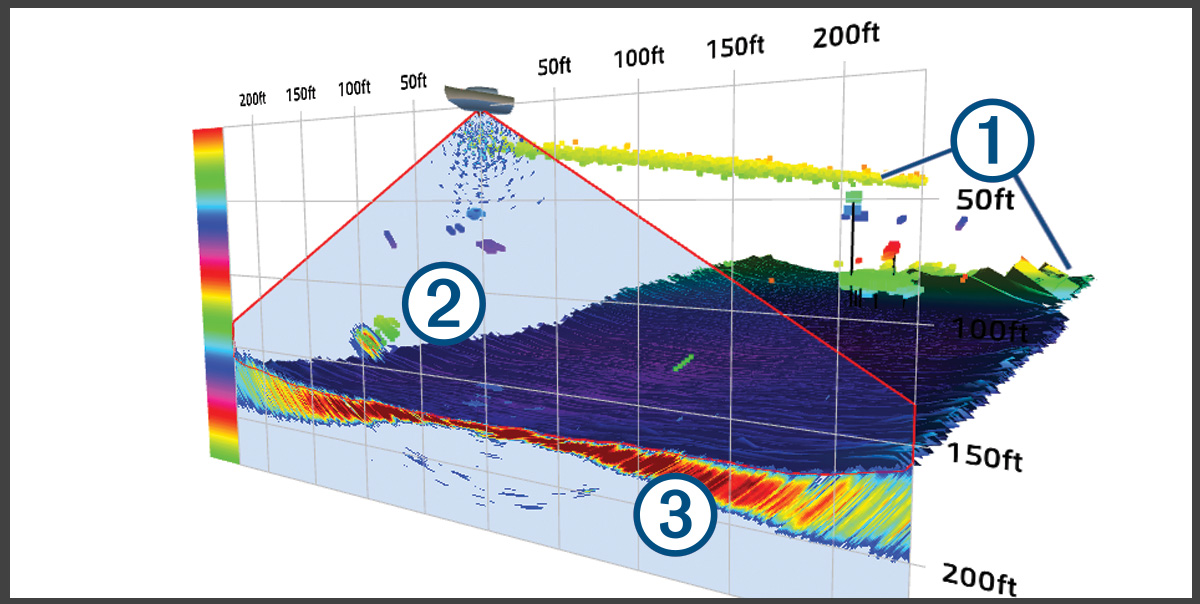

RealVü 3D historical livevu sonar view with callouts

Callout number 1

RealVü 3D Historical bottom, structure, and fish

Callout number 2

LiveVü down view structure and fish

Callout number 3

LiveVü down view bottom
