Press

to turn on the chartplotter.

From any screen, press

repeatedly to scroll through the brightness levels, if available. This can be helpful when the brightness is so low you cannot see the screen.

Turn the knob to highlight options.

Turn the knob to zoom in or out of a screen.

Hold a numbered key to create a shortcut to a screen.

Select HOME from any screen to open to the home screen.

Select MENU to open additional settings about that screen.

Select BACK when finished with a menu, if necessary.

Press

to open additional options, such as adjusting the backlight.

Press

, and select Power > Turn Off System, or hold

until the Turn Off System bar fills to turn off the chartplotter, when available.

Press

, and select Power > Sleep Station to set the chartplotter to standby mode, when available.

To exit standby mode, select .

If arrows indicate not all options are visible, press the indicated arrow key to view the additional options.

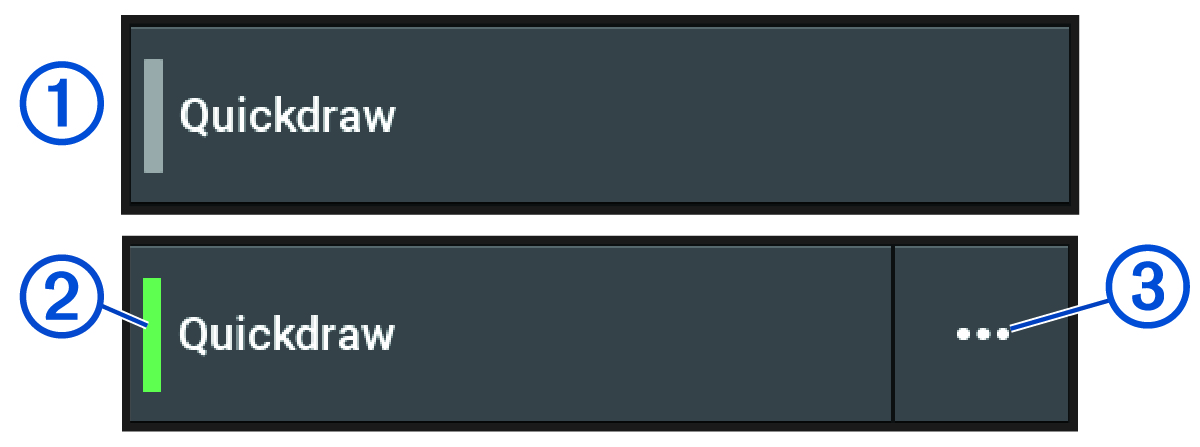

On some menu buttons, select the button Callout number 1

to enable the option.

A green light on an option indicates the option is enabled Callout number 2 .

When available, select

to open the menu.
