Charging the Device

WARNING

Do not use a power cable, data cable, and/or power adapter that is not supplied by Garmin® or is not properly certified.

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

NOTE: The device will not charge when outside the approved temperature range (Edge Specifications).

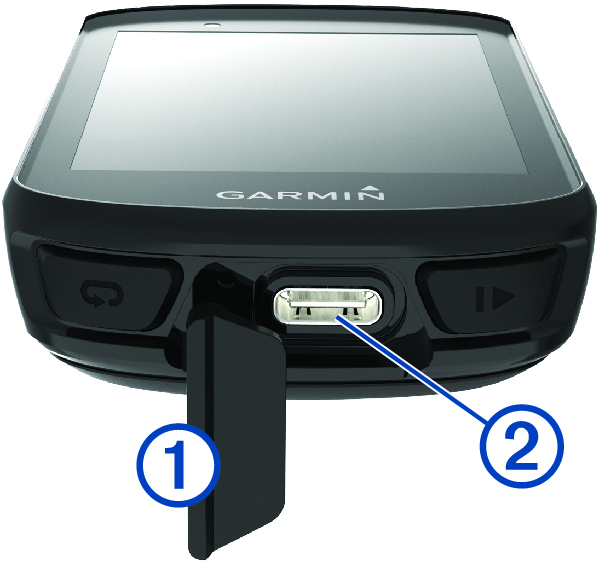

  1. Pull up the weather cap Callout number 1 from the USB port Callout number 2.

    Bottom view of the device with callouts

  2. Plug the small end of the cable into the charging port on the device.
  3. Plug the large end of the cable into a USB charging port.

    When you connect the device to a power source, the device turns on.

  4. Charge the device completely.

After you charge the device, close the weather cap.

GUID-AF71A516-A97E-4CE9-BD88-68921B5F014D v7
August 2024
