NOTE:
If you do not have this mount, you can skip this task.
-
Select a secure location to mount the
Edge® device where it does not interfere with the safe operation of your bike.
-

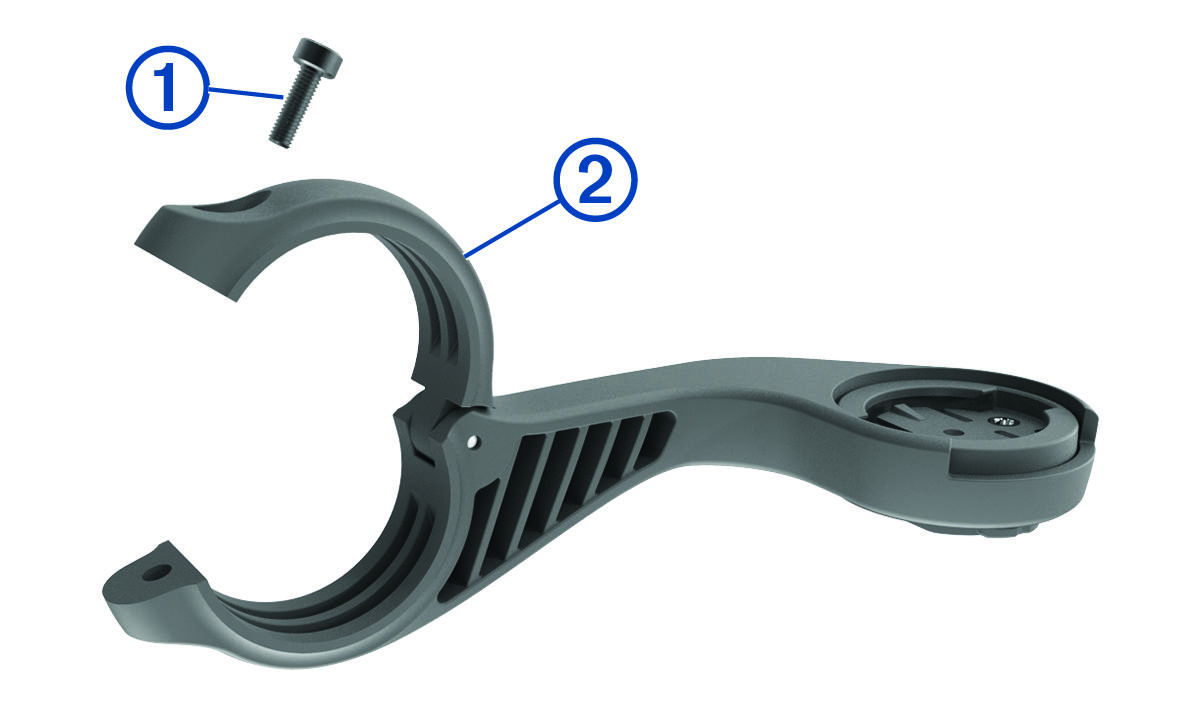

Use the hex key to remove the screw
from the handlebar connector
.
-
Place the rubber pad around the handlebar:
-
If the handlebar diameter is 25.4 mm, use the thicker pad.
-
If the handlebar diameter is 31.8 mm, use the thinner pad.
-
Place the handlebar connector around the rubber pad.
-
Replace and tighten the screw.
NOTE:
Garmin® recommends tightening the screw so the mount is secure, with a maximum torque specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.
-

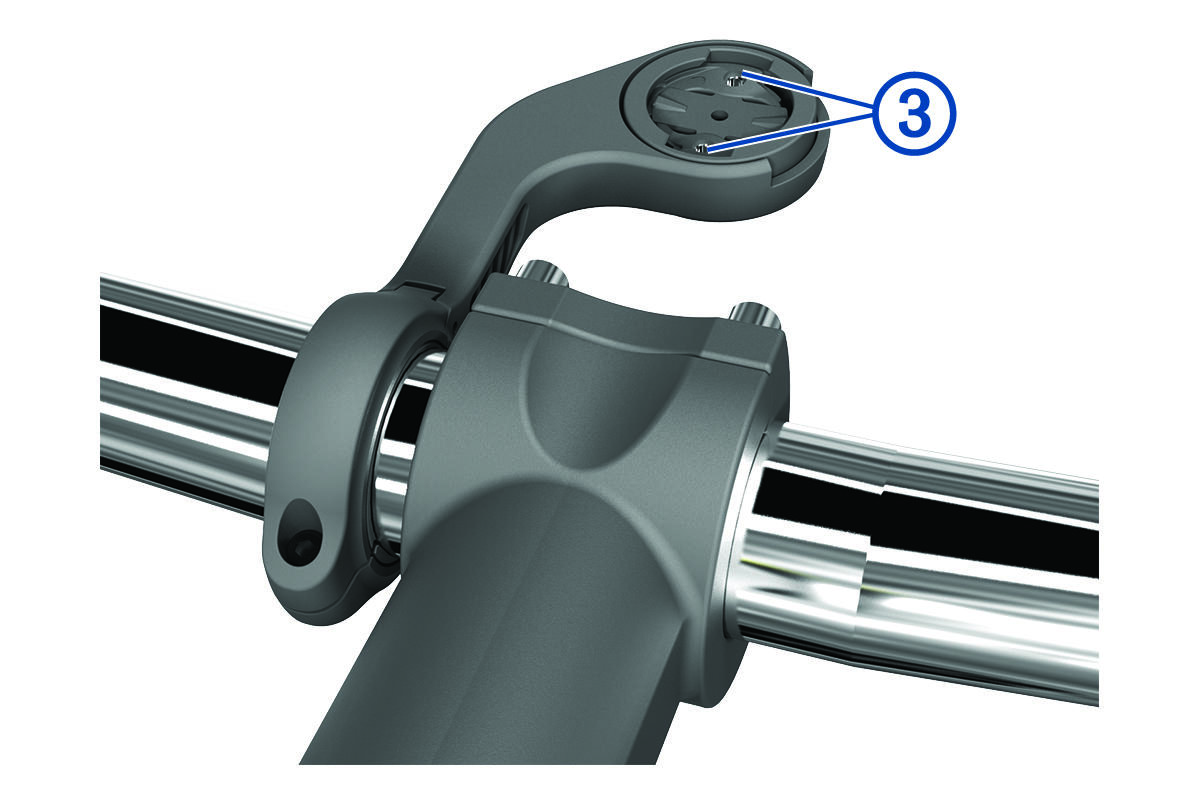

Align the tabs on the back of the
Edge device with the bike mount notches
.
-
Press down slightly and turn the
Edge device clockwise until it locks into place.
