Mounting the Sight on a Bow

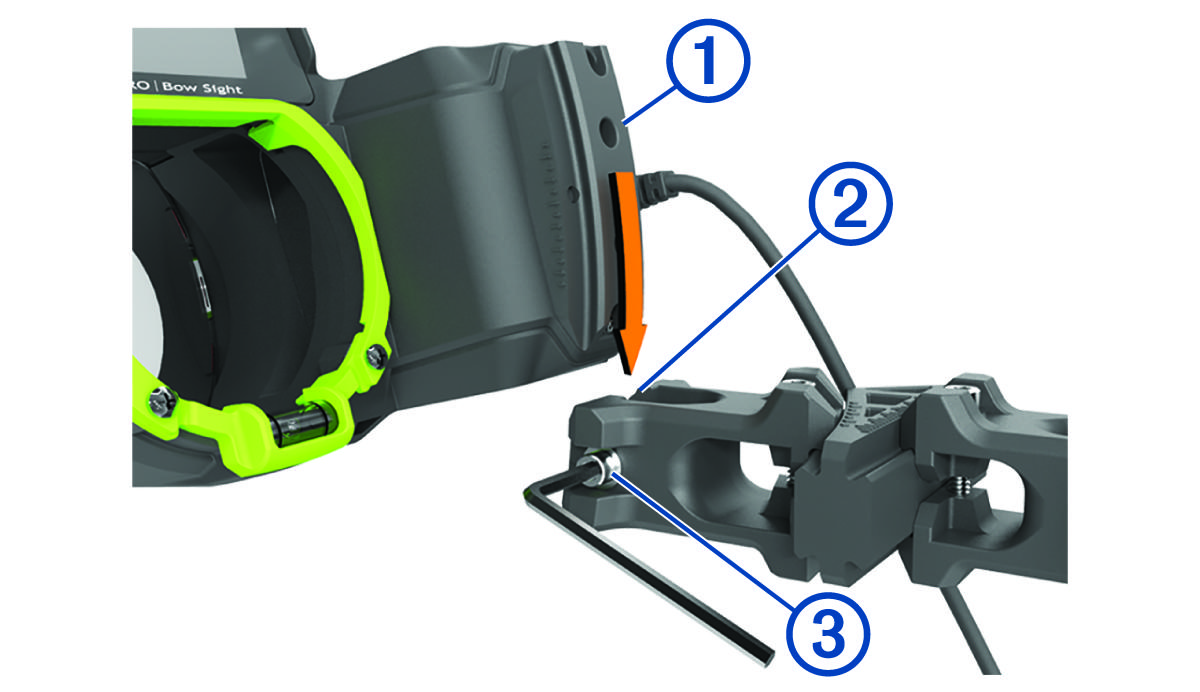

  1. Insert the curved rail mount Callout number one from the back of the bow sight into the grooves at the front of the mount assembly Callout number two.

    Device on the mount with callouts
  2. Align the arrow on the mount with the center arrow on the curved rail.
  3. Using a 7/64 inch hex wrench, tighten the screw at the front of the rail mount Callout number three to a maximum torque specification of 2.2 N-m (20 lbf-in).

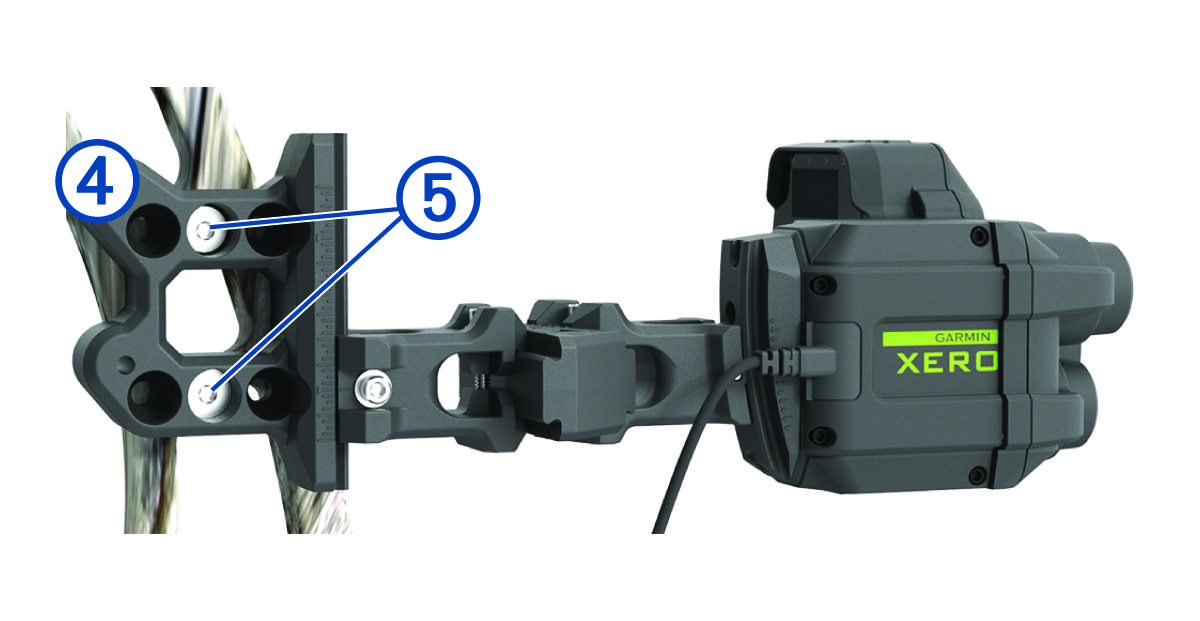

  4. Align the large holes on the mount Callout number four with the mounting holes on the side of your bow.

    The mount on a bow with callouts
    TIP: The mount contains three sets of mounting holes. Mount the sight in a location that functions best with your peep sight aperture. Mounting the sight closer to the bow may allow a better fit in some bow cases.
  5. Using a 1/8 inch hex wrench, secure the mount using the included mounting screws Callout number five.
  6. Tighten the mounting screws to a maximum torque specification of 6.7 N-m (60 lbf-in).
    NOTE: Do not exceed the bow manufacturer's recommended torque values.
