Device Overview

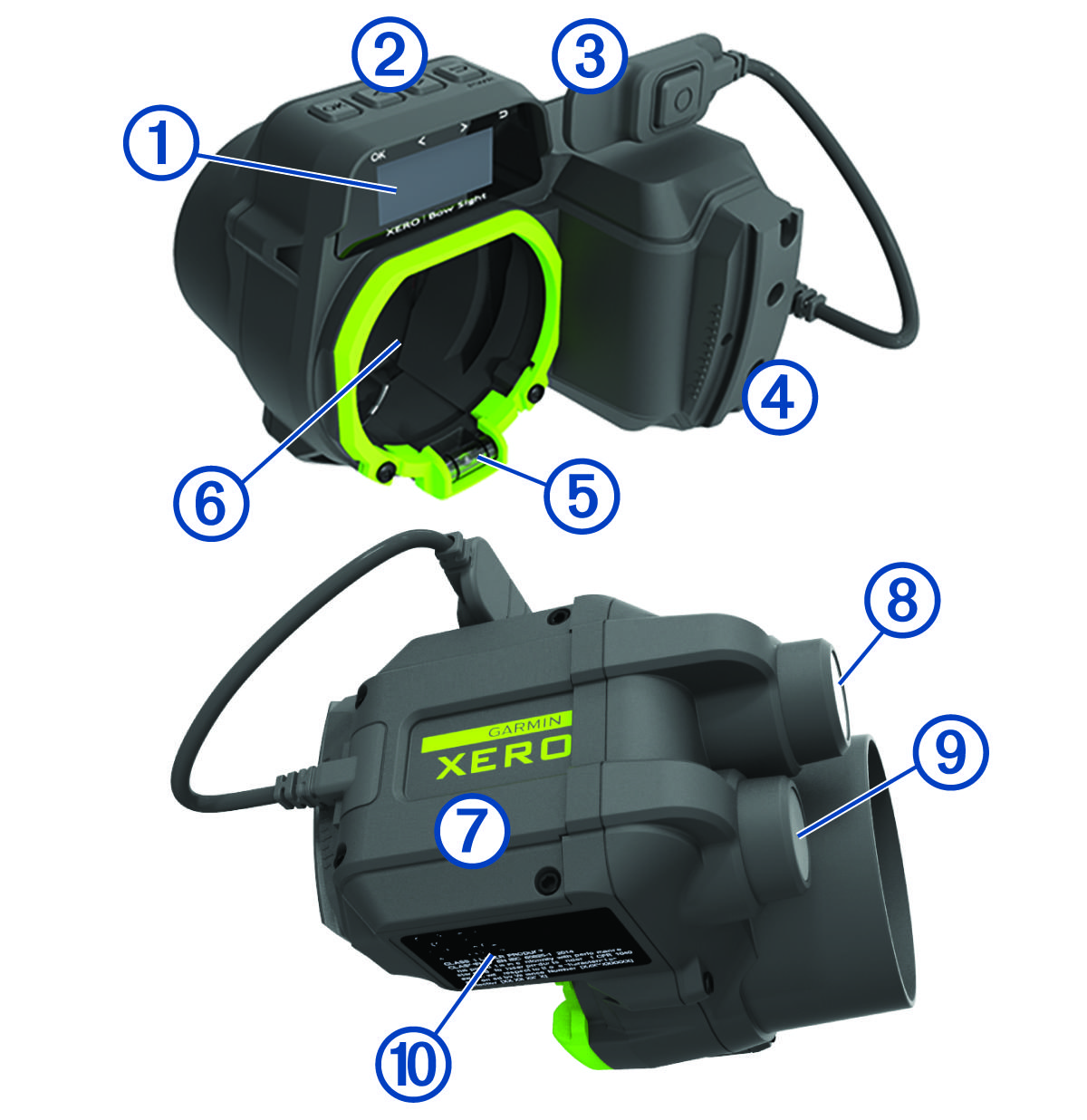

Back and side views of the device with callouts

Callout number one LCD screen

Displays target range and device settings

Callout number two Buttons

Select to move through menus, select options, and configure the device (Buttons)

Callout number three Laser rangefinder trigger

Hold to activate the laser rangefinder

Tap to reset the pin timer or display fixed pins

Callout number four Mounting rail

Attaches the device to the included mount

Callout number five Level

Shows when the device is level

Callout number six Optic

Displays the pins

Callout number seven Battery door

Remove to install batteries

Callout number eight Laser receiver

Receives laser light for measuring the distance to a target

Callout number nine Laser emitter

Emits laser light for measuring the distance to a target

Callout number ten Device label

View manufacturer's identification and certification


Device label
