Installing the Dock on a Vehicle Surface

Before you can mount the dock, you must select a mounting location and purchase the appropriate hardware for your mounting surface.

NOTICE

Avoid wires, gauges, air bags, air bag covers, HVAC, and other items when drilling pilot holes and attaching the mount to the vehicle. Garmin® is not responsible for any damages or consequences arising from the installation.

  1. Trim the included mounting template and place it in the location where you want to mount the device.
  2. Using a jigsaw or rotary tool, cut the mounting surface along the inside of the dashed line indicated on the template.
  3. Place the dock into the cutout to test the fit.
  4. Remove the dock from the cutout.
  5. If necessary, use a file and sandpaper to refine the size of the cutout.
  6. Drill the pilot holes in the locations marked on the mounting template.
  7. Remove the template from the mounting surface.
  8. If you will not have access to the back of the dock after you mount it, connect all of the necessary cables to the dock before placing it into the cutout.
  9. Place the dock into the cutout.

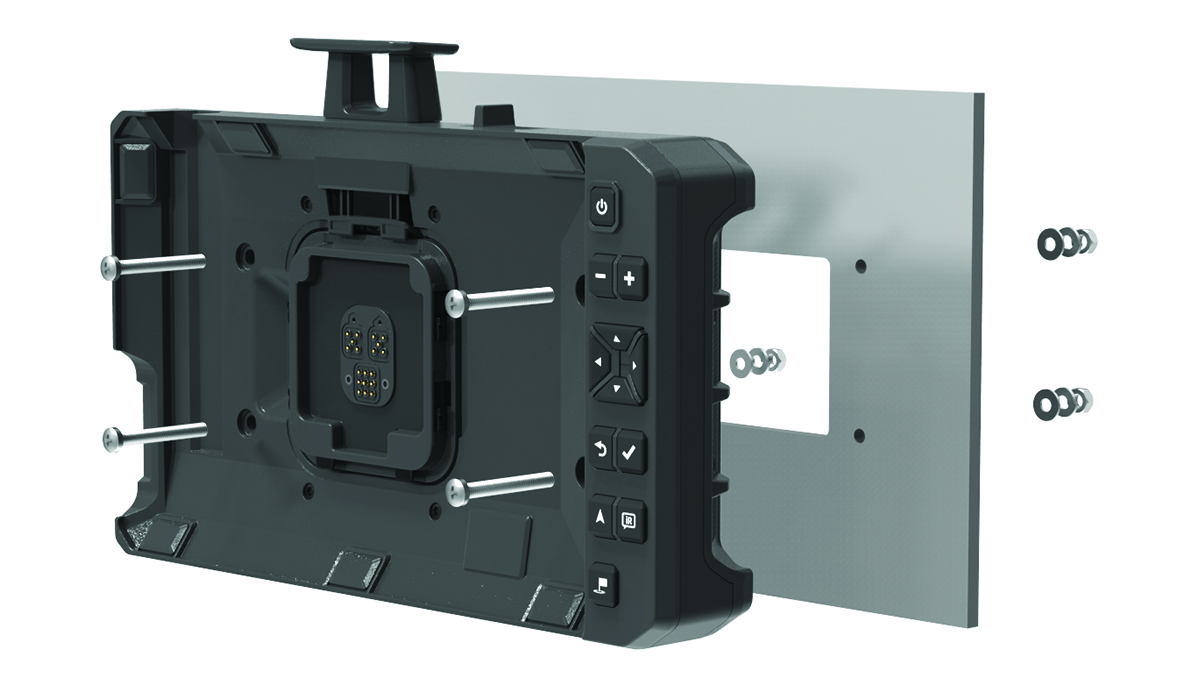

    Diagram of the dock mounting to a surface
  10. Secure the dock to the mounting surface using the appropriate hardware.
