Power Cable Overview

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

WARNING

Garmin® strongly recommends having an experienced installer with the proper knowledge of electrical systems install the device. Incorrectly wiring the power cable can result in damage to the vehicle or the battery and can cause bodily injury.

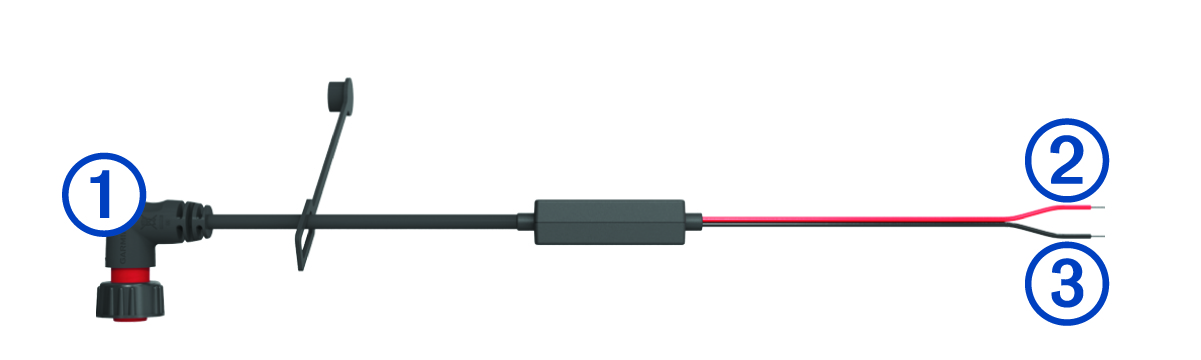

Power cable with callouts

Callout number 1

Mount connector

Callout number 2

12 to 24 Vdc system power (red)

Callout number 3

System ground (black)
