Installing Your Device in the Mount

  1. Fit the bottom of your device into the cradle.

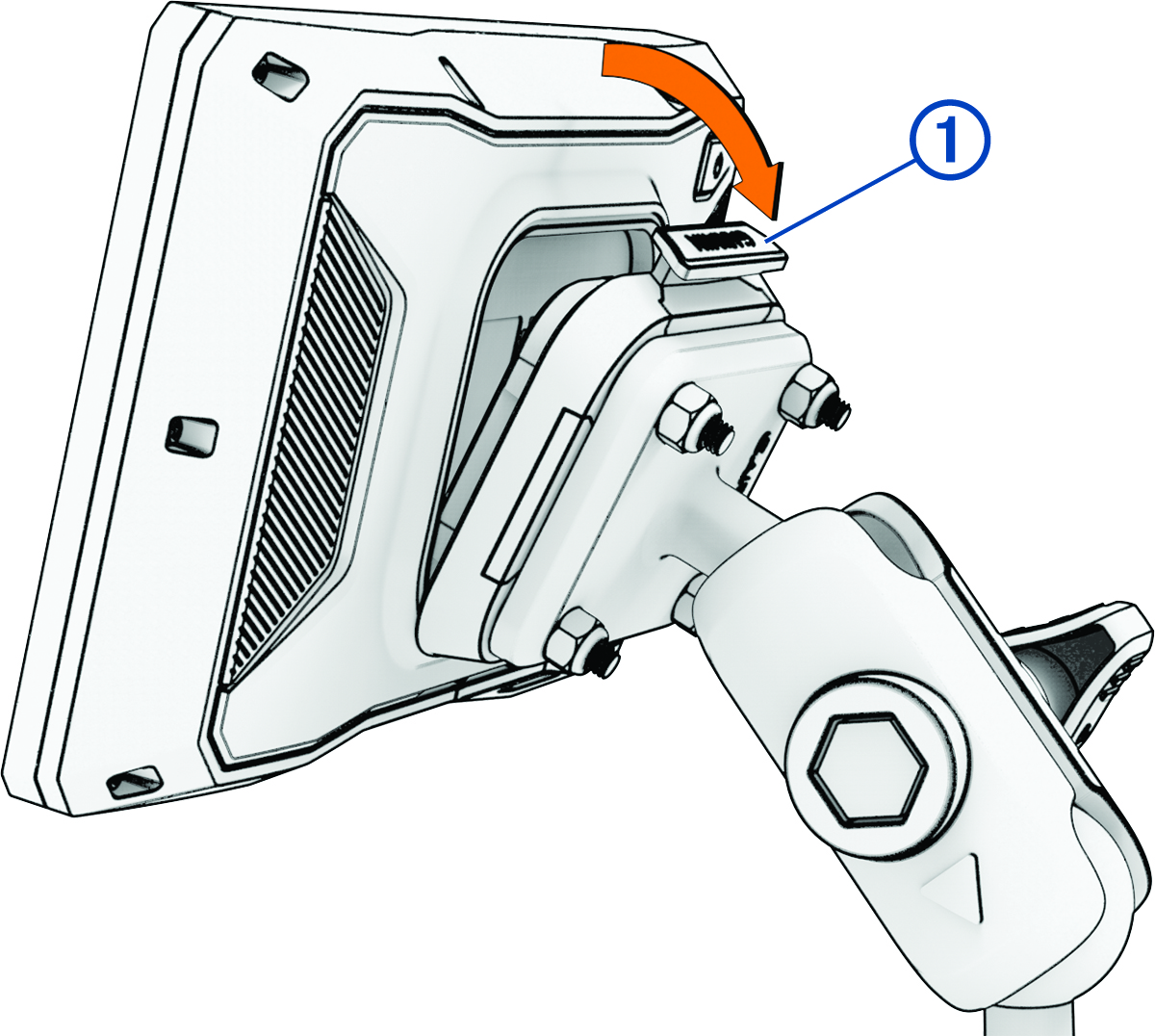

    GPS device being attached to a mount with a callout
  2. Push the top of the device forward until it snaps into place.

You can push the latch Callout number 1 down to release the device from the mount.
