Handheld Device Screen

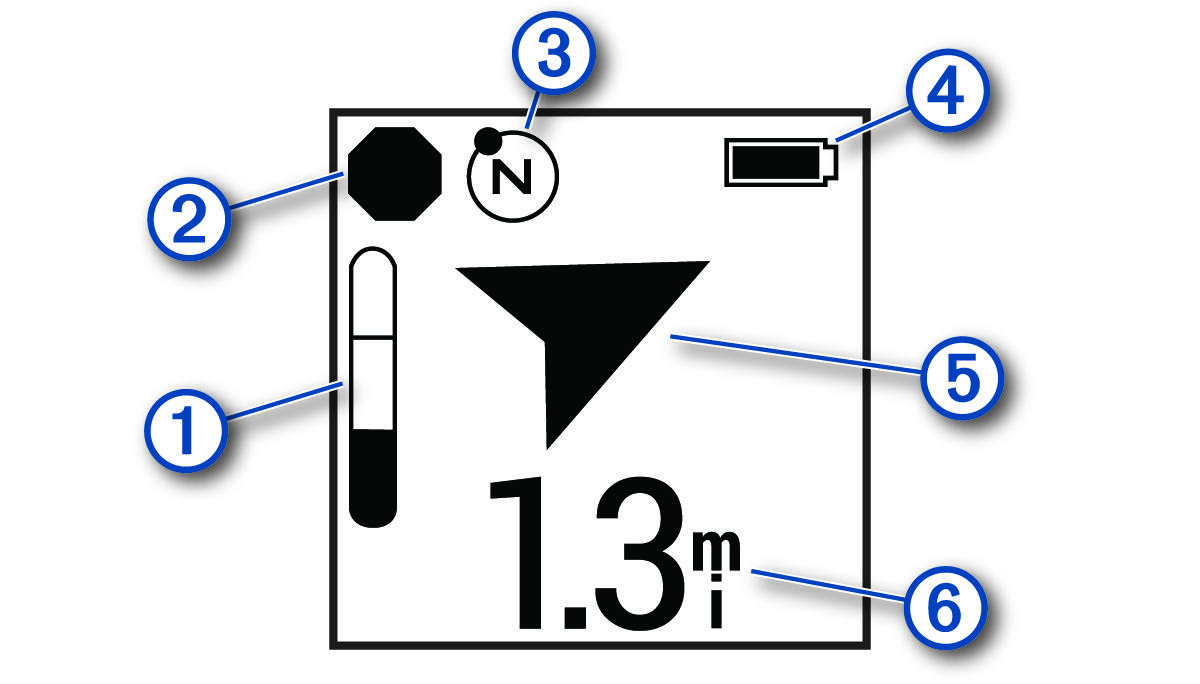

Handheld device screen with callouts

Callout number one

Current dog selection. Indicates the dog collar device currently selected with the toggle switch.

Callout number two

If the dog is moving, no icon appears.

Dog stopped symbol The dog has stopped moving.

Disconnected dog device symbol The dog collar device has no GPS signal.

NOTE: If the handheld device loses communication with the dog collar device, Disconnected dog device symbol and Unknown battery status appear.

Callout number three

North-pointing indicator.

NOTE: If the indicator does not point north, you may need to calibrate the handheld device (Calibrating the Compass on the Handheld Device).

Callout number four

Battery status Battery level of the dog collar device.

Unknown battery status Unknown battery status. Indicates the handheld device cannot determine the battery status of the dog collar device.

Callout number five

Direction to the currently selected dog collar device.

NOTE: If the arrow does not accurately point to paired dog collar devices, you may need to calibrate the handheld device (Calibrating the Compass on the Handheld Device).

Callout number six

Distance to the currently selected dog collar device.
