Charging the Dog Collar Device

NOTICE

To prevent corrosion, thoroughly dry the contacts on the collar and the surrounding area before connecting the charging clip.

NOTE: Your dog collar device may look different than the device pictured.

You should fully charge the battery before you use the device for the first time. Charging a fully depleted battery takes about five hours.

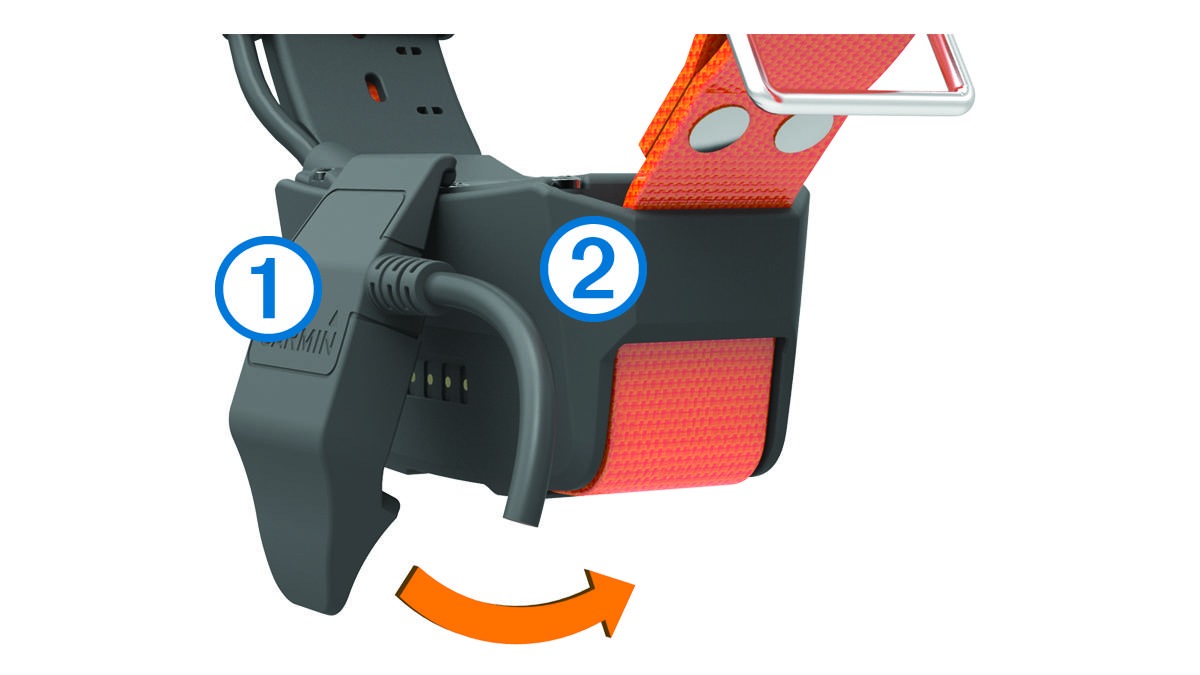

  1. Snap the charging clip Callout number one onto the device Callout number two.

    Charging clip attachment to dog device with callouts
  2. Plug the small end of the power cable into the mini-USB port on the charging clip cable.
  3. Plug the power cable into a power source.

    The status LED is solid red when the collar is charging.

  4. After the status LED turns solid green, remove the charging clip from the collar.
