Attaching the Base Plate to the Motorcycle Mount

NOTICE

Direct, sustained contact with the base plate, or any part of the motorcycle, may damage the mount over time. To prevent this kind of damage, you must place the mounting spacers between the mount and base plate, and make sure that no part of the device or mount touches the motorcycle.

  1. Thread the M4 x 20 mm panhead screws Callout number one through the washers Callout number two, cradle, spacers Callout number three, and base plate Callout number four.

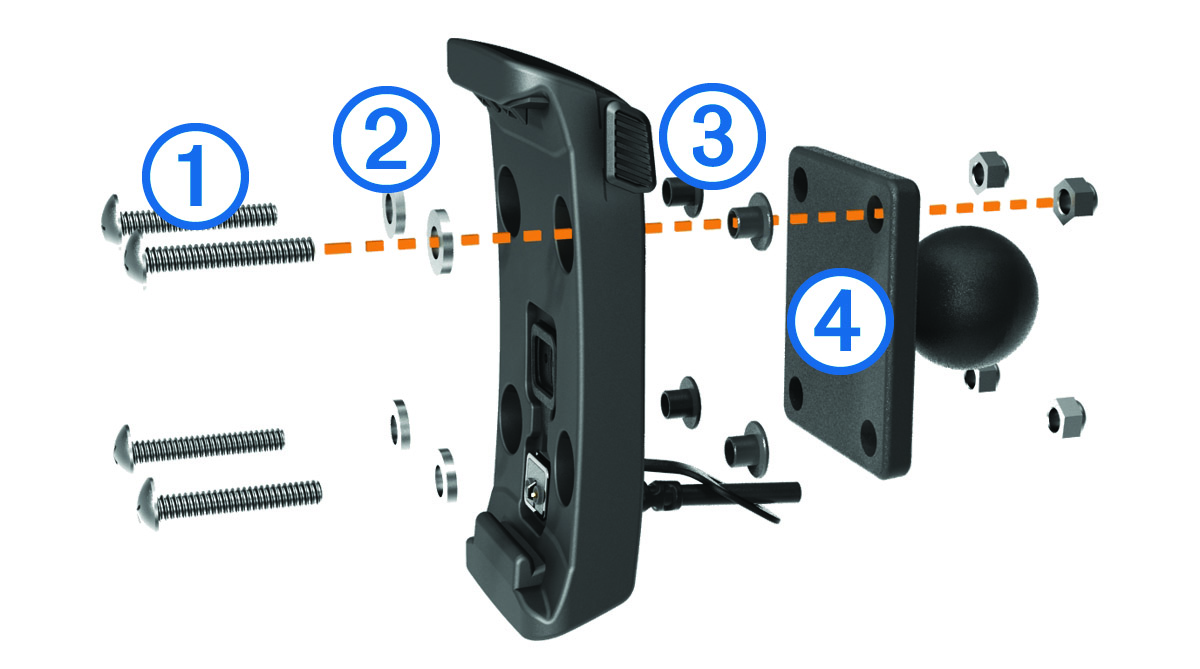

    Mount and base plate with callouts
  2. Tighten the nuts to secure the base plate.
