Installing the Handlebar Base to the Clutch-Clamp or Brake-Clamp Brackets

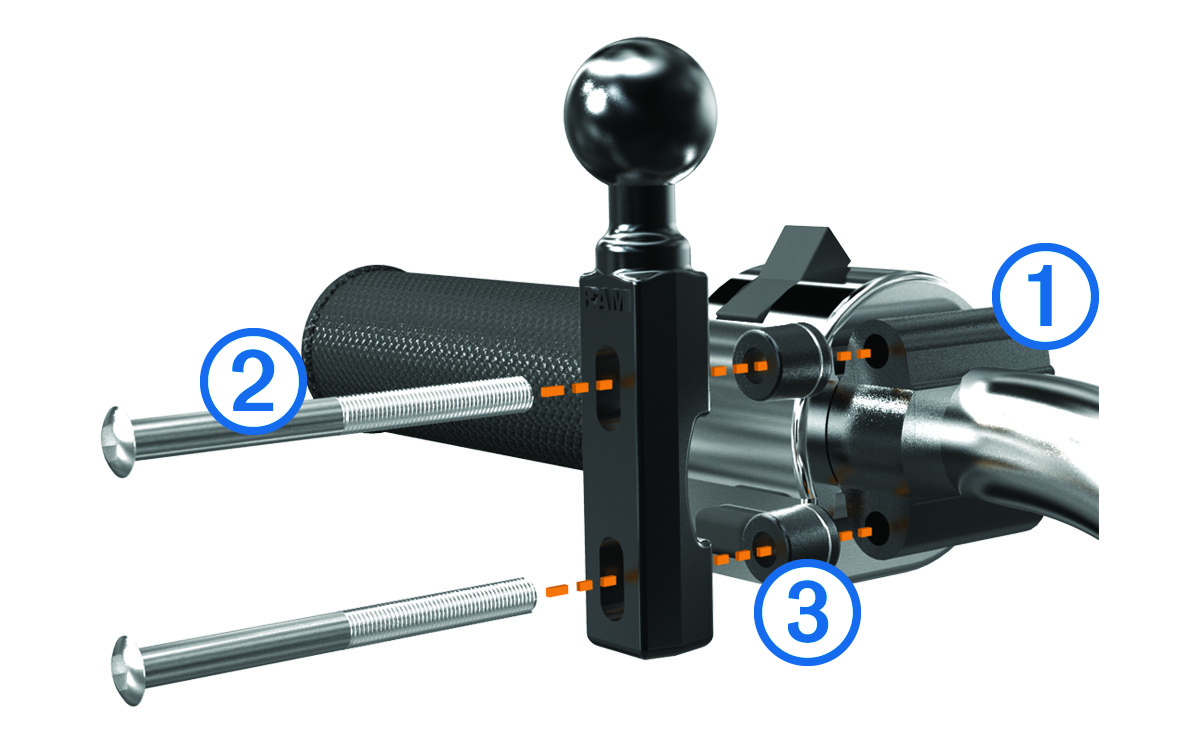

  1. Remove the two factory bolts on your clutch-clamp or brake-clamp bracket Callout number one.


    NOTE: Both 1/4 in. standard and M6 bolts are included. Match the size of the factory bolts on your clutch-clamp or brake-clamp bracket.
  2. Thread the new bolts Callout number two through the handlebar base, spacers Callout number three, and clutch-clamp or brake-clamp bracket.
  3. Tighten the bolts to secure the base.
