Mounting Your Device in an Automobile

NOTICE

Before mounting the device, check the local laws pertaining to windshield mounting.

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

WARNING

Do not use the suction cup mount on a motorcycle.

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

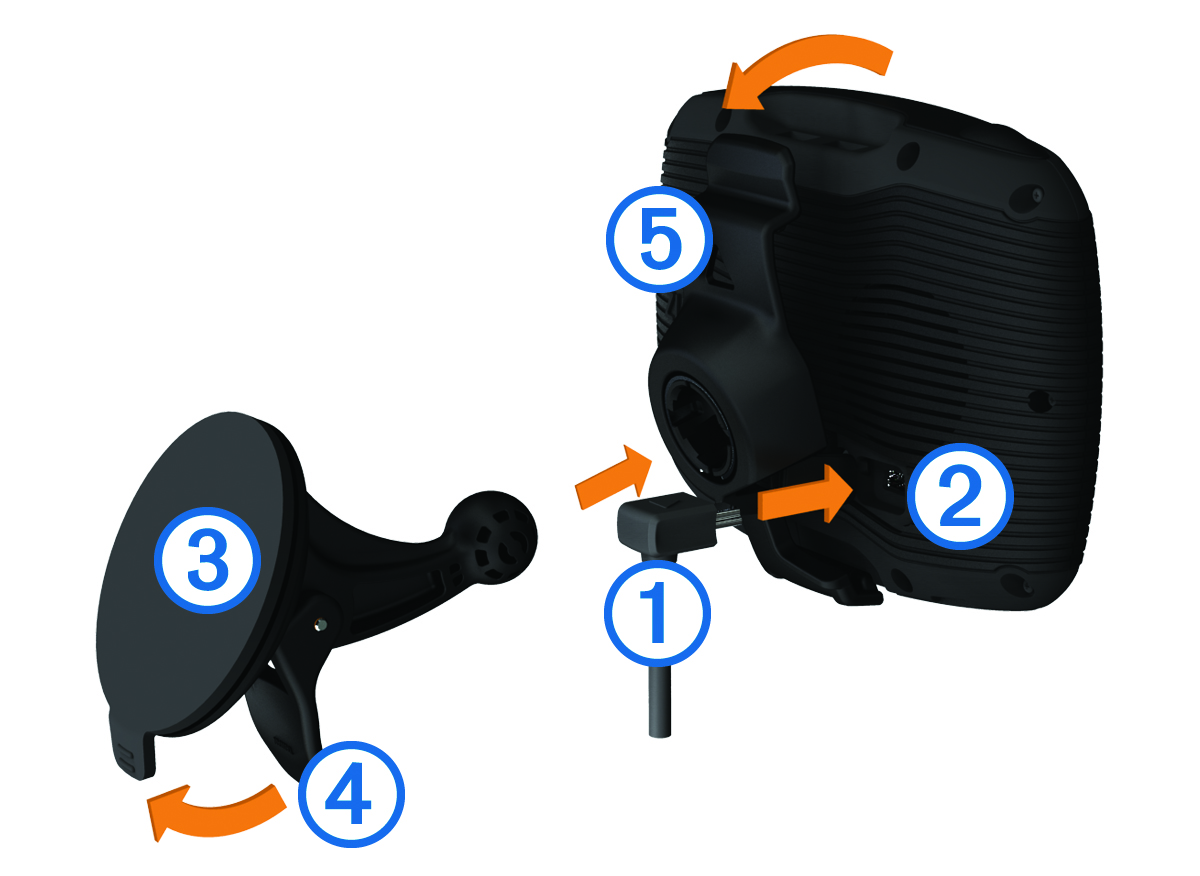

  1. Plug the automotive power cable Callout number one into the port Callout number two on the mount.

    Mounting diagram with callouts
  2. Remove the clear plastic from the suction cup Callout number three.
  3. Clean and dry your windshield and the suction cup with a lint-free cloth.
  4. Press the suction cup to the windshield, and flip the lever Callout number four back toward the windshield.
  5. Snap the cradle Callout number five onto the suction cup arm.
  6. Fit the bottom of your device into the cradle.
  7. Tilt the device back until it snaps into place.
  8. Plug the other end of the automotive power cable into a power outlet.
