Attaching the Base Plate to the Handlebar Base

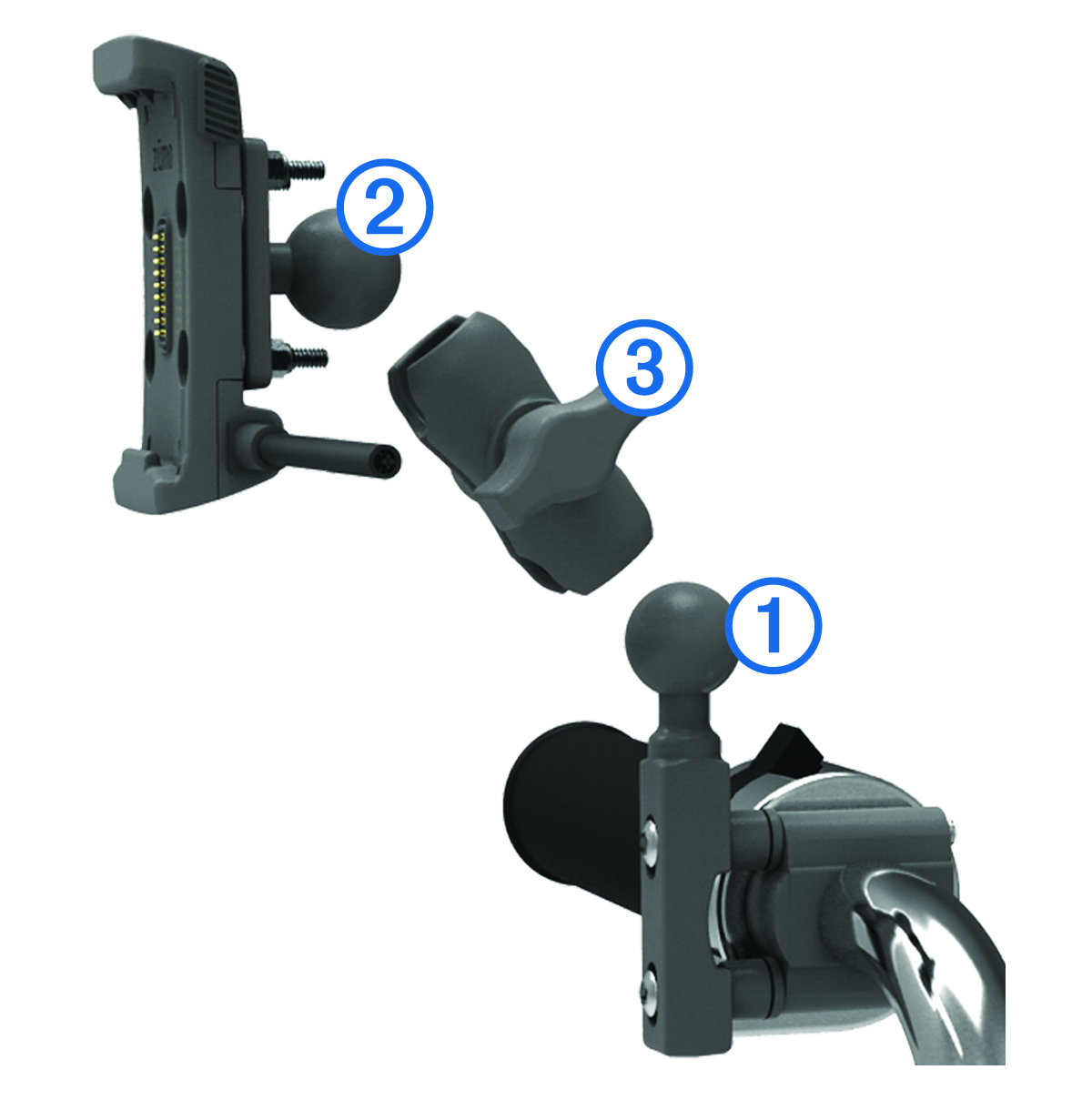

  1. Align the ball of the handlebar base Callout number one and the ball of the base plate Callout number two with each end of the double-socket arm Callout number three.

    Base plate and handlebar base with callouts
  2. Insert each ball into the double-socket arm.
  3. Tighten the knob slightly.
  4. Adjust for optimal viewing and operation.
  5. Tighten the knob to secure the mount.
