Inserting Memory Cards

You can use optional memory cards with the chartplotter. Map cards allow you to view high-resolution satellite imagery and aerial reference photos of ports, harbors, marinas, and other points of interest. You can use blank memory cards to record Garmin Quickdraw™ Contours mapping, record sonar (with a compatible transducer), transfer data such as waypoints and routes to another compatible chartplotter or a computer, and use the ActiveCaptain® app.

This device supports up to a 32 GB microSD® memory card, formatted to FAT32 with speed class 4 or higher. Use of an 8 GB or larger memory card with speed class 10 is recommended.

  1. Open the access flap or door Callout number one on the front of the chartplotter.

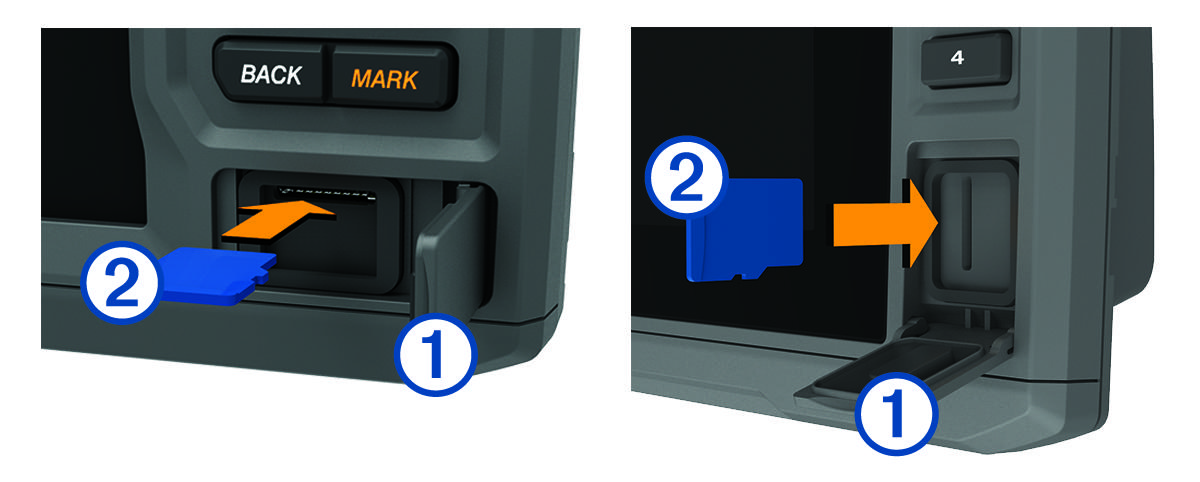

    Memory card insertion with callouts
  2. Insert the memory card Callout number two.
  3. Press the card in until it clicks.
  4. Clean and dry the gasket and door.
    NOTICE

    To prevent corrosion, be sure the memory card, gasket, and door are thoroughly dry before closing the door.

  5. Close the door.
