Garmin SideVü Sonar View

NOTE:

Not all models provide built-in Garmin SideVü™ sonar support. If your model does not provide built-in SideVü sonar, you need a compatible sounder module and compatible SideVü transducer.

If your model does provide built-in SideVü sonar, you need a compatible SideVü transducer.

SideVü scanning sonar technology shows you a picture of what lies to the sides of the boat. You can use this as a search tool to find structures and fish.

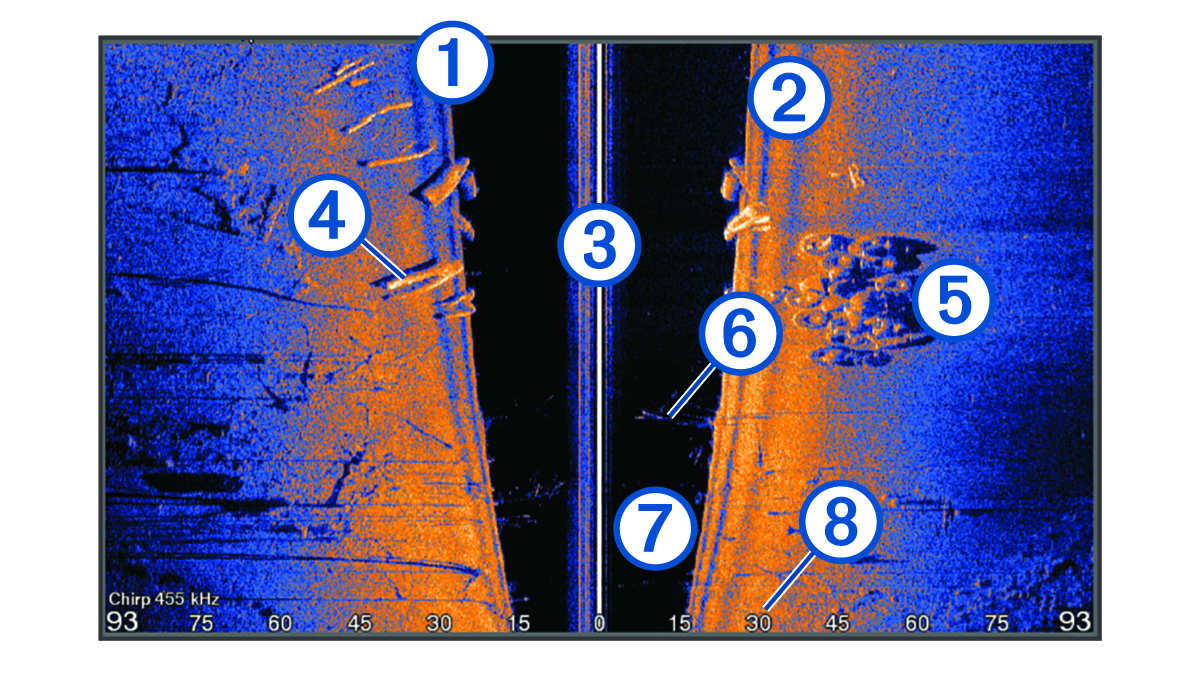

SideVü sonar view with callouts

Callout number one

Left side of the boat

Callout number two

Right side of the boat

Callout number three

The transducer on your vessel

Callout number four

Logs

Callout number five

Old tires

Callout number six

Trees

Callout number seven

Water between the vessel and the bottom

Callout number eight

Distance from the side of the boat
