ECHOMAP Plus 70/90 Connector View

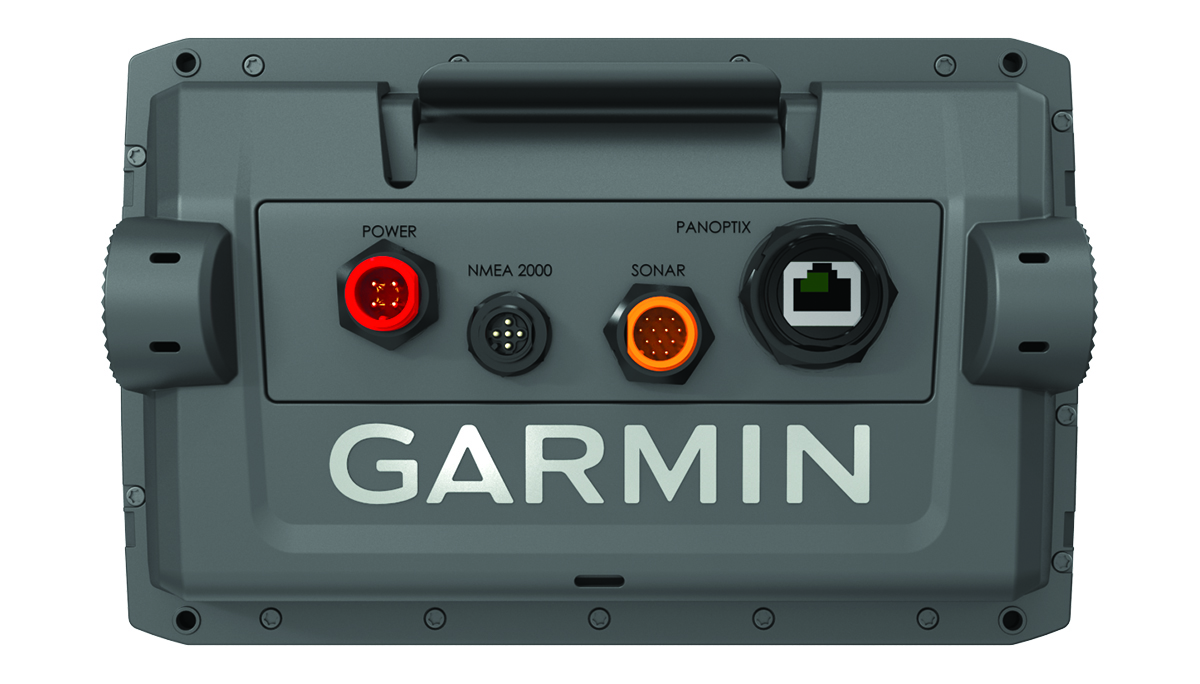

Device back view with callouts

POWER

Power and NMEA® 0183 devices

NMEA 2000

NMEA 2000® network

SONAR

12-pin transducer

PANOPTIX

Panoptix™ LiveScope™ sonar or Garmin® Marine Network for sharing sonar, charts, and user data

NOTICE

To prevent corrosion of the metal contacts, cover unused connectors with weather caps.

NOTICE

For best performance and to prevent corrosion, insert the cable connector fully into the port and turn the locking ring clockwise to tighten it. If the split-collar locking ring is not installed, you must install it.
