ECHOMAP Plus 40 Device View

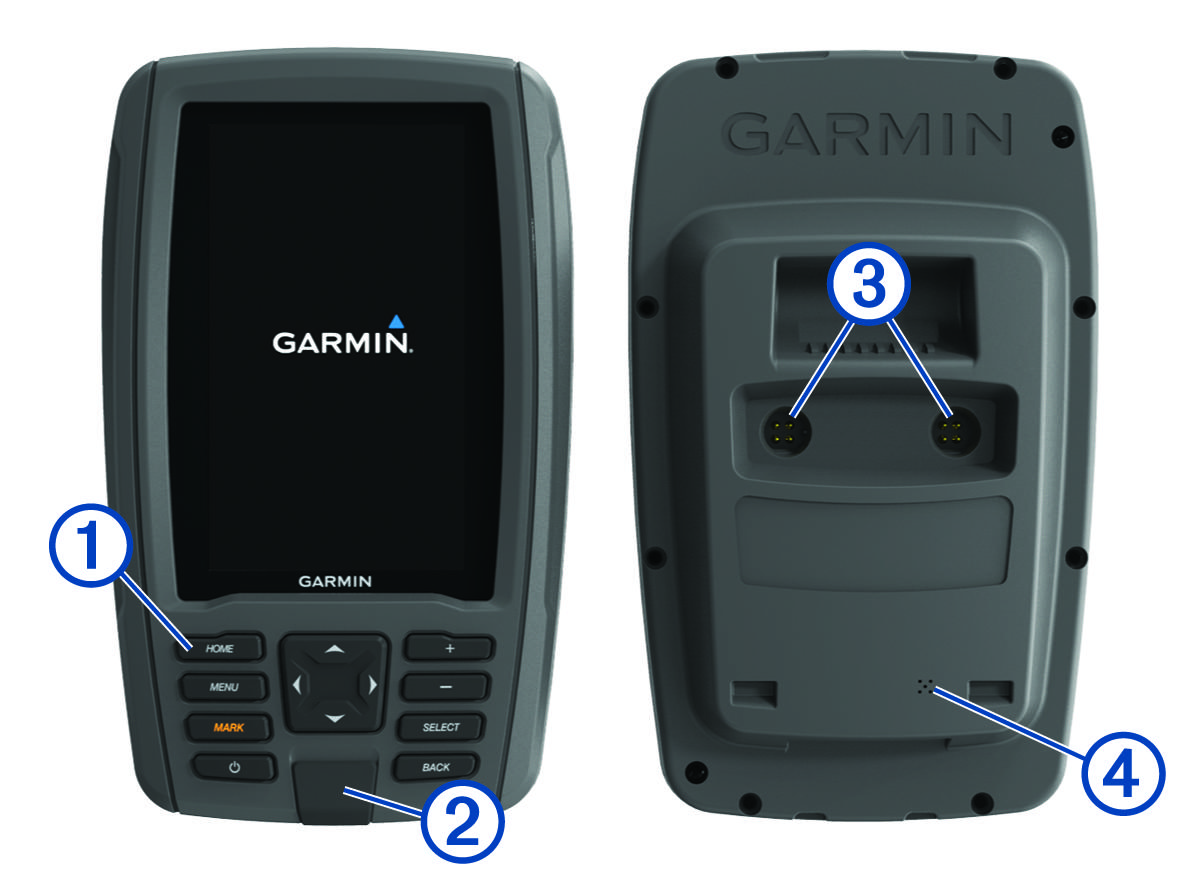

Device front and back view with callouts

Callout number one

Device keys

Callout number two

microSD® memory card slot

Callout number three

Power and transducer connectors

Callout number four

Beeper

NOTICE

Each time you place the device in the bracket, you should make sure the device is firmly secured in the cradle, the cables are fully pushed into the device and cradle, and the locking bracket is snapped firmly closed. There is an audible click when the device or locking bracket is installed correctly. If the cables are not fully seated and the device is not firmly secured, it can lose power or stop working. The device can also fall out of the cradle and become damaged if it is not firmly secured.
