Charging the Device

NOTICE

To prevent corrosion, thoroughly clean and dry the contacts and the surrounding area before charging or connecting to a computer. Refer to the cleaning instructions (Device Care).

The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.

  1. Plug the USB end of the cable into an AC adapter or a computer USB port.
  2. If necessary, plug the AC adapter into a standard wall outlet.
  3. Pinch the sides of the charging cradle Callout number one to open the arms on the cradle.

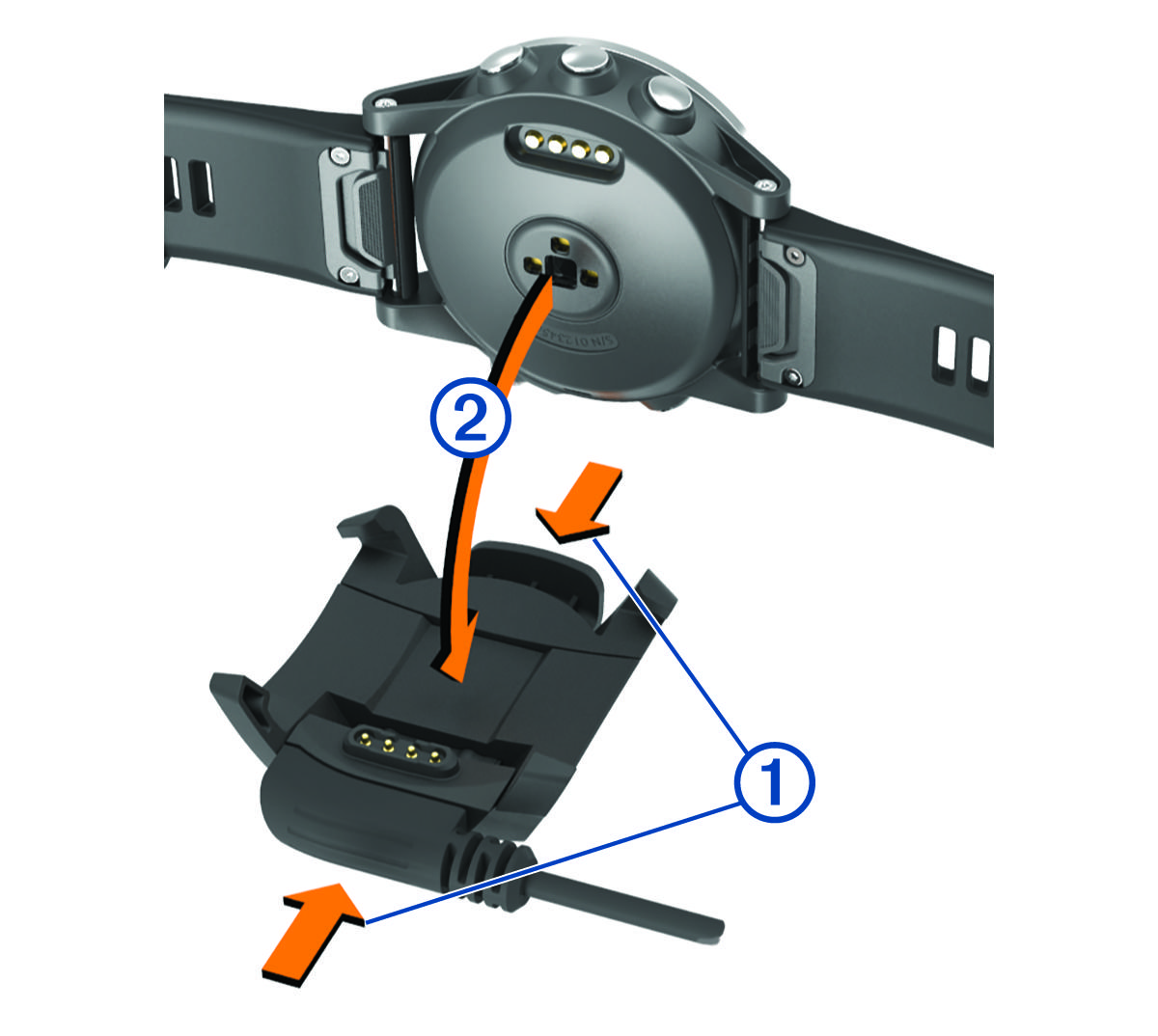

    Close-up view of the device connecting to the charging cradle with callouts
  4. With the contacts aligned, place the device into the cradle Callout number two and release the arms to hold the device in place.

    When you connect the device to a power source, the device turns on, and the battery charge level appears on the screen.

  5. Charge the device completely.
