Device Overview

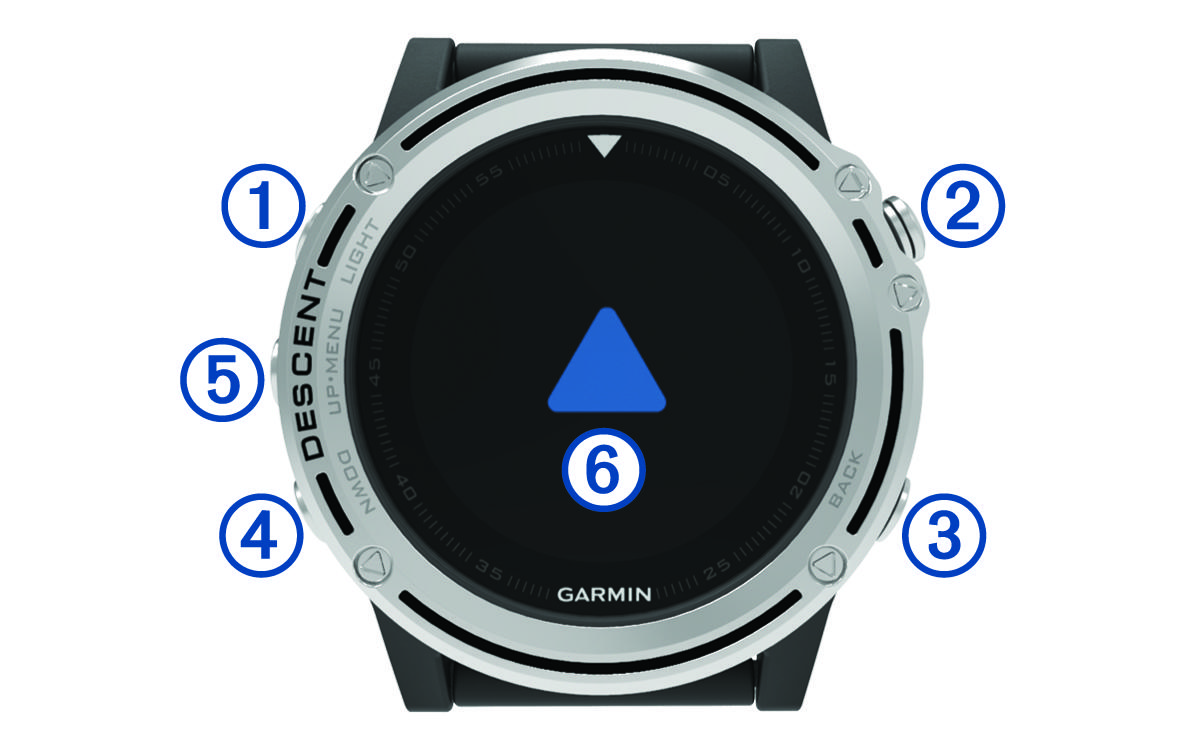

Front view of the device with callouts

Callout number one

LIGHT

Select to turn the backlight on and off.

Hold to view the controls menu.

Hold to turn the device on.

NOTE: While diving, hold functions are disabled.

Callout number two

Start

Select to view the activity list and start or stop an activity.

Select to choose an option in a menu.

Select for the dive compass, stopwatch, or gas switching during a dive.

Callout number three

BACK

Select to return to the previous screen.

Select to record a lap, rest, or transition during a multisport activity.

NOTE: While diving, key presses are enabled only in menus.

Callout number four

DOWN

Select to scroll through the widget loop and menus.

Select to scroll through the data screens during a dive.

Hold to view the watch face from any screen.

Callout number five

UP

MENU

Select to scroll through the widget loop and menus.

Hold to view the menu.

NOTE: While diving, key presses are disabled.

Callout number six

Double tap the device to scroll through the data screens during a dive.
