Charging the Collar

NOTICE

To prevent corrosion, thoroughly dry the contacts on the collar and the surrounding area before connecting the charging clip.

You should fully charge the battery before you use the device for the first time or whenever the battery is low (Checking the Battery Level). It is normal for the battery to discharge in approximately 7 to 10 weeks when the device is not in use. Charging a fully depleted battery takes about 2 hours.

NOTE: The device will not charge when outside the temperature range of 32° to 104°F (0° to 40°C).
  1. Snap the charging clip Callout number one onto the device Callout number two.

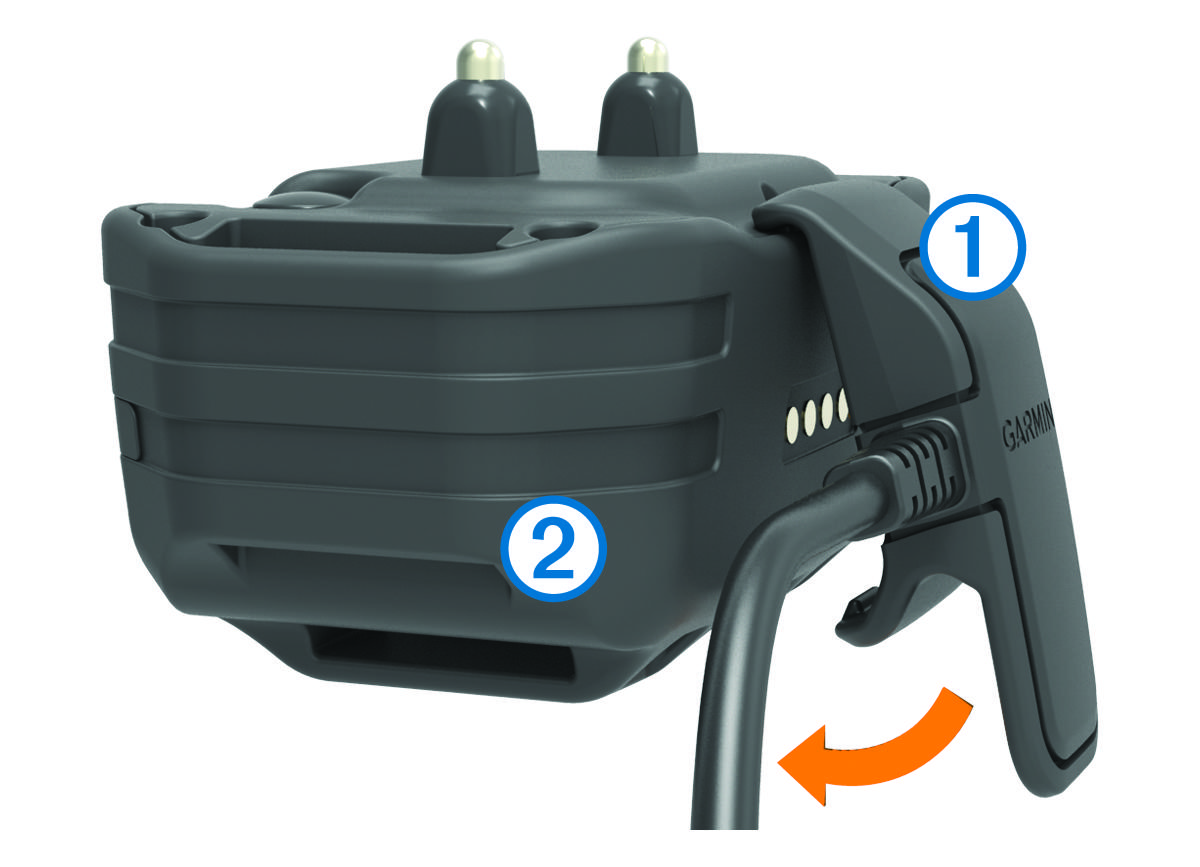

    Diagram of the charger attaching to the dog collar device with callouts
  2. Plug the power cable into a power source.

    The status LED is solid red when the collar is charging.

  3. After the status LED turns solid green, remove the charging clip from the collar.
