Attaching the Dog Collar Device to the Collar Strap

  1. With the buckle Callout number one facing outward, insert the end of the collar strap through the slot Callout number two on the collar device.

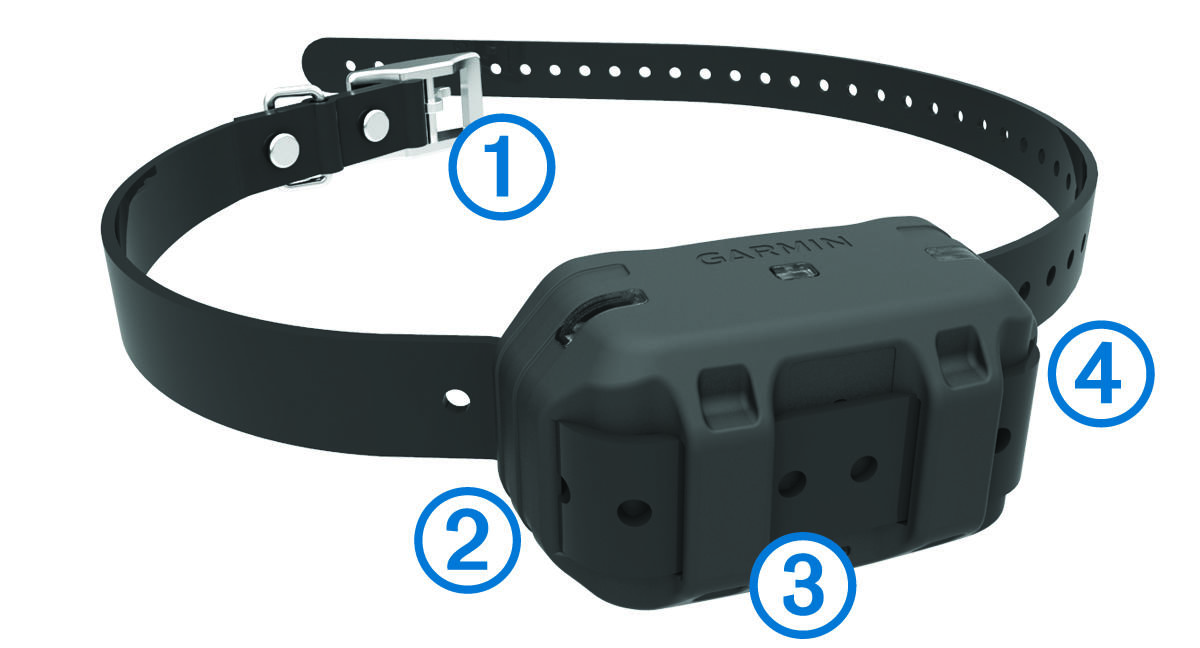

    Collar attachment with callouts
  2. Pull most of the collar strap through the two slots Callout number three on the dog device.
  3. Insert the end of the collar strap through the slot Callout number four on the opposite side of the device.
  4. Pull the strap until it is tight across the front of the device.
