LED Statuses

The status LED Callout number one indicates the device status. The charge LED Callout number two indicates the battery status.

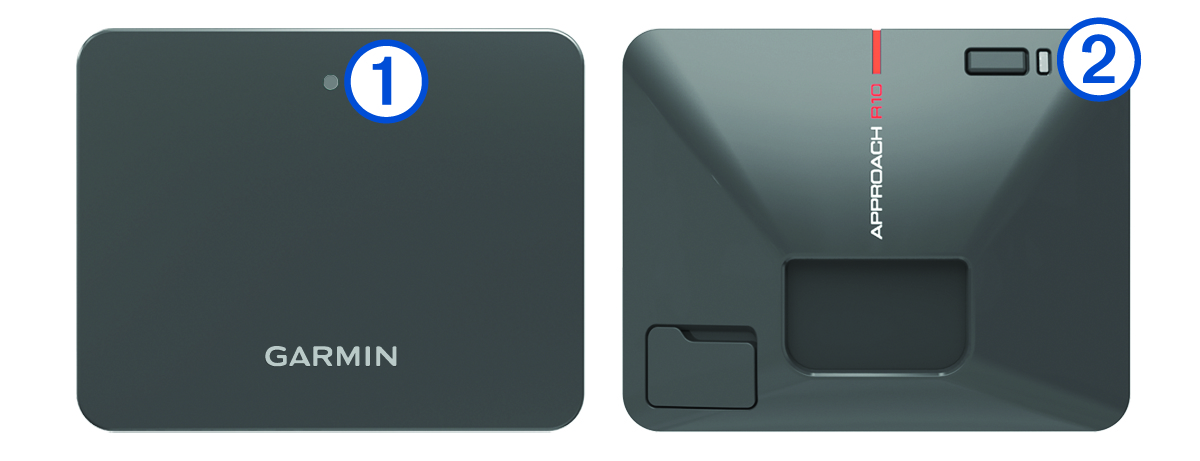

Front and back views of the device with callouts

Callout number one Status LED Activity

Status

Solid blue

The launch monitor is in pairing mode.

Flashing blue

The launch monitor is reconnecting to the previously connected phone.

Solid white

The launch monitor is in mass storage mode.

Flashing white

The launch monitor is in standby mode.

Flashing green

The launch monitor is ready for a shot.

Solid red

The launch monitor is busy.

Flashing red

An error occurred. To resolve the error, reset the launch monitor. If that does not resolve the issue, go to support.garmin.com.

Flashing purple

A software update is in progress.

Callout number two Charge LED Activity

Status

Flashing red

The battery is charging.

Solid red

The battery is fully charged.

Rapidly flashing red

The launch monitor is unplugged and the remaining battery power is low.

NOTE: The LED flashes rapidly for five seconds after the launch monitor is turned on if the battery is low.
