Horizontal Situation Indicator

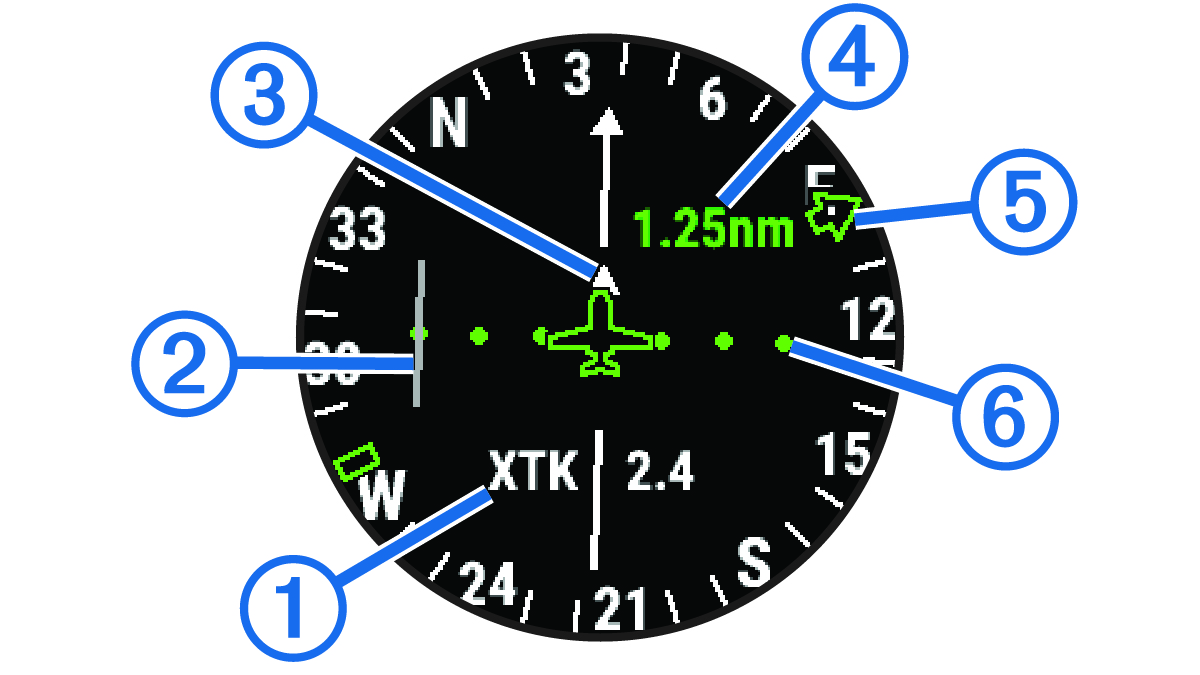

Screenshot of the horizontal situation indicator with callouts

Callout number one

Configurable navigation data field.

Callout number two

Course deviation indicator (CDI). Indicates the location of the desired course line in relation to your location.

Callout number three

To-and-from indicator. Indicates whether you are headed toward or away from the waypoint.

Callout number four

Course deviation distance scale.

Callout number five

Bearing to the nearest airport.

Callout number six

Course deviation distance. The dots indicate your distance off course.
