Charging the Device

WARNING

This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.

NOTICE

To prevent corrosion, thoroughly clean and dry the contacts and the surrounding area before charging or connecting to a computer. Refer to the cleaning instructions (Device Care).

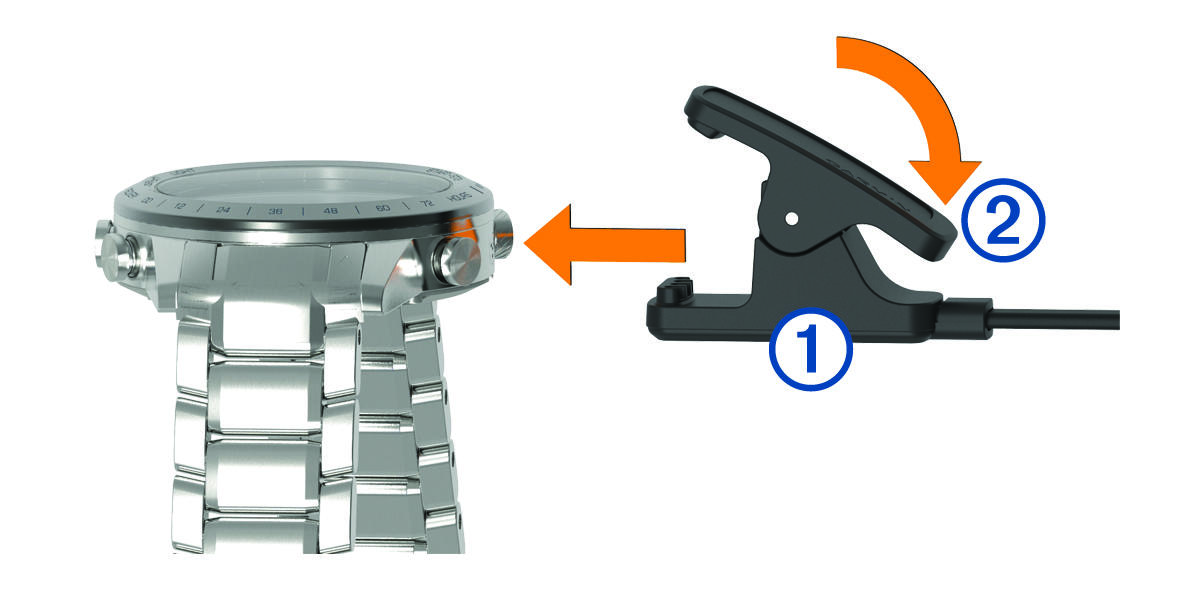

  1. Align the charger posts with the contacts on the back of the device, and connect the charging clip Callout number one securely to the device.

    Charger attachment with callouts
  2. Plug the USB cable into a USB charging port.
  3. Charge the device completely.
  4. Press Callout number two to remove the charger.
