Installing the Cart Mount

For the best GPS reception, position the mount so the front of the device is oriented toward the sky. You can install the mount on any bar that is approximately 19 mm to 38 mm (0.75 in. to 1.5 in.).

  1. Select a secure location to mount the device where it does not interfere with the safe operation of your vehicle.
  2. Place the rubber disk Callout number one on the back of the mount.

    The rubber tabs align with the back of the mount so it stays in place.

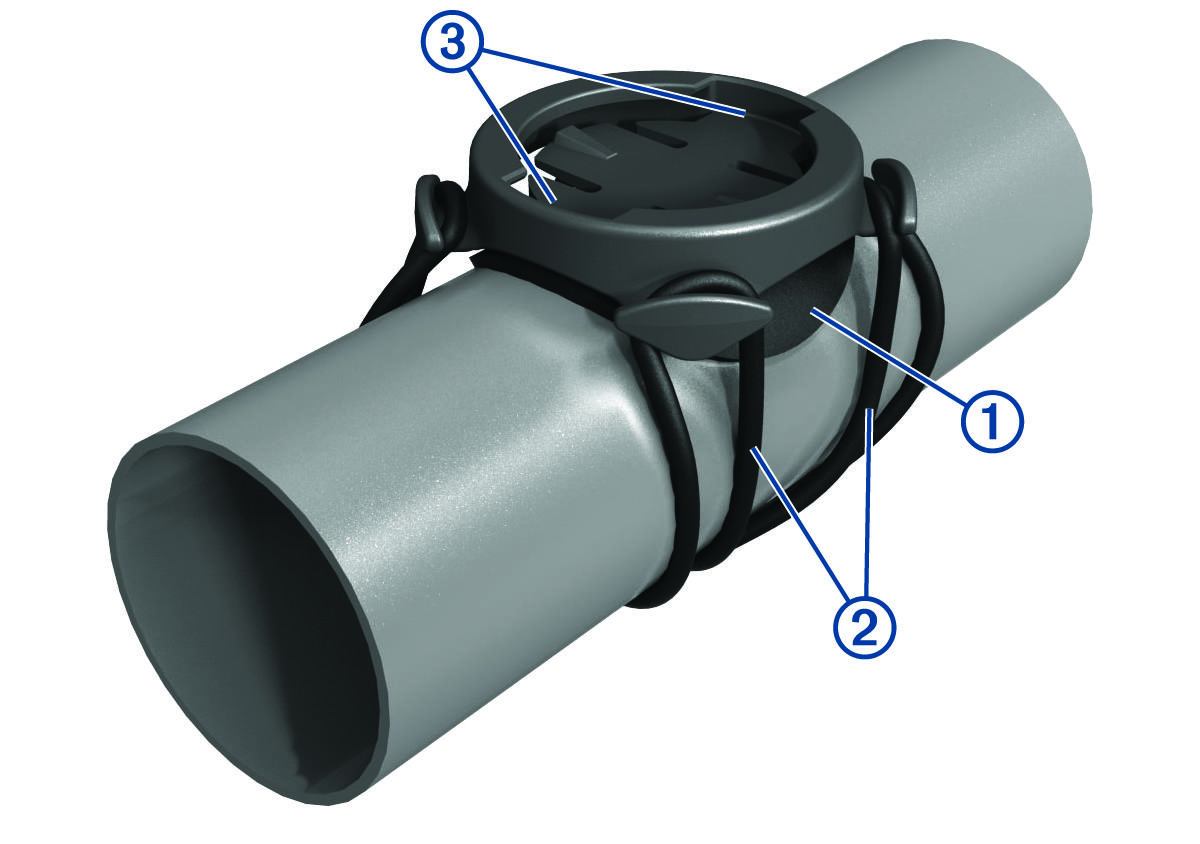

    Front view of the cart mount with callouts
  3. Place the mount on the bar.
  4. Attach the mount securely using the two bands Callout number two.
  5. Align the tabs on the back of the holder with the mount notches Callout number three.
  6. Press down slightly and turn the holder clockwise until it locks into place.

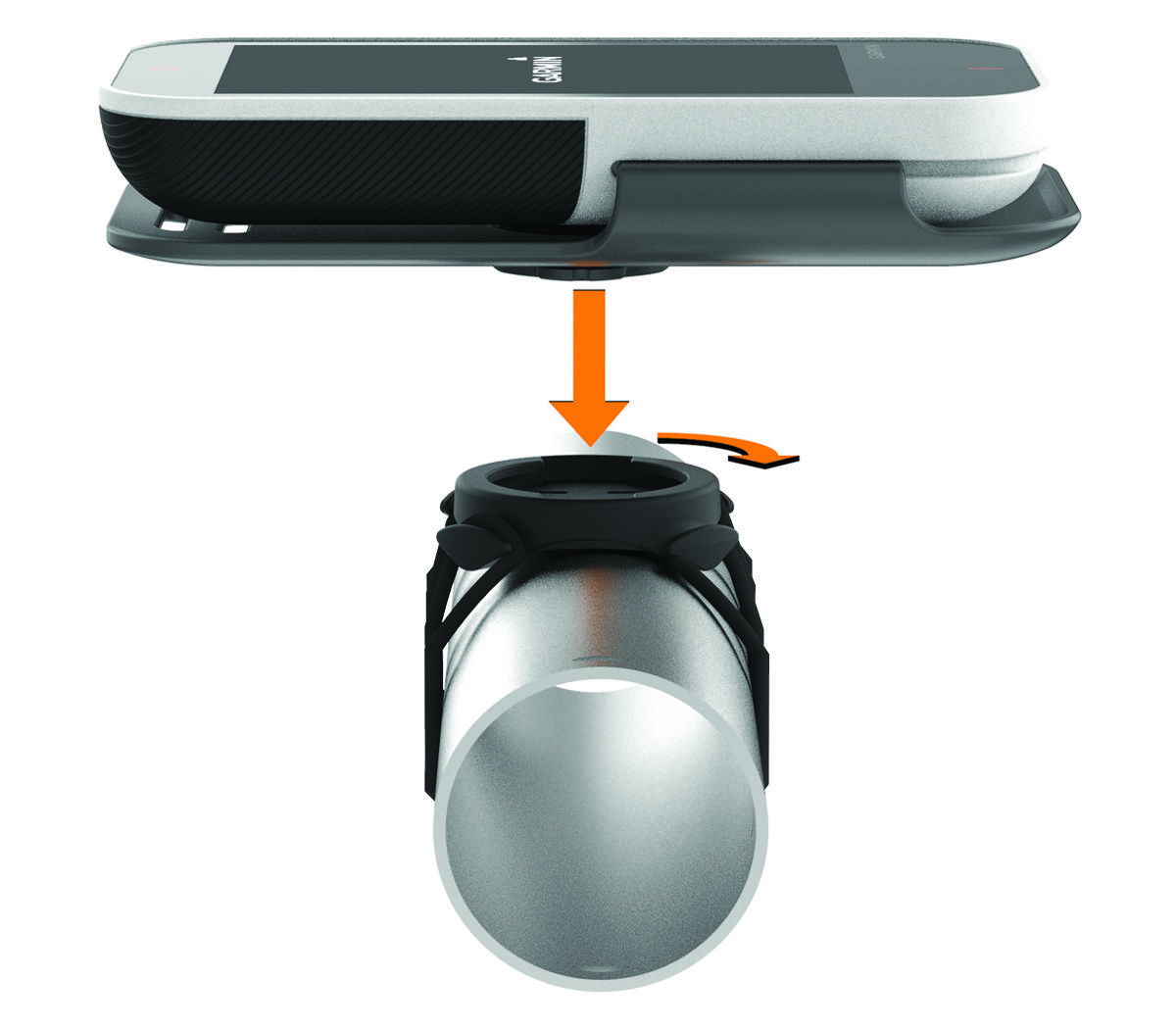

    Close-up view of the device being mounted to the cart mount
