Mounting and Powering the Device in Your Vehicle

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

WARNING

Both the device and its mount contain magnets. Under certain circumstances, magnets may cause interference with some internal medical devices and electronic devices, including pacemakers, insulin pumps, or hard drives in laptop computers. Keep the device away from medical devices and electronic devices.

Before you use your device on battery power, you should charge it.

  1. Open the lever Callout number 1, press the suction cup to the windshield, and flip the lever back toward the windshield.

    The lever must be oriented toward the top of the windshield.

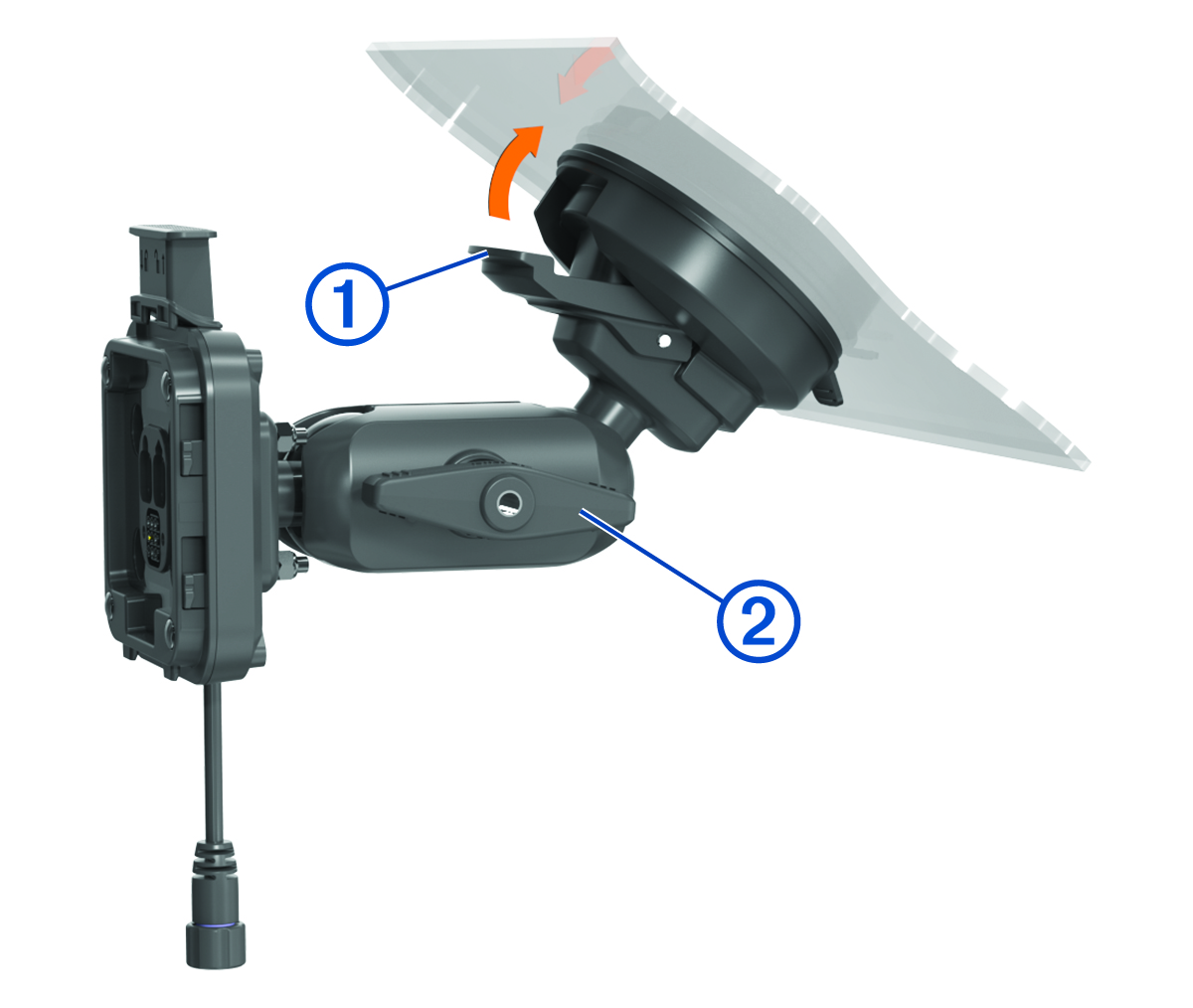

    Mount and suction cup attaching to the windshield with callouts
  2. Tighten the knob Callout number 2 slightly.
  3. If necessary, adjust the mount for better viewing and operation.
  4. Tighten the knob to secure the mount.
  5. Connect the vehicle power cable Callout number 3 to the cable Callout number 4 on the mount.

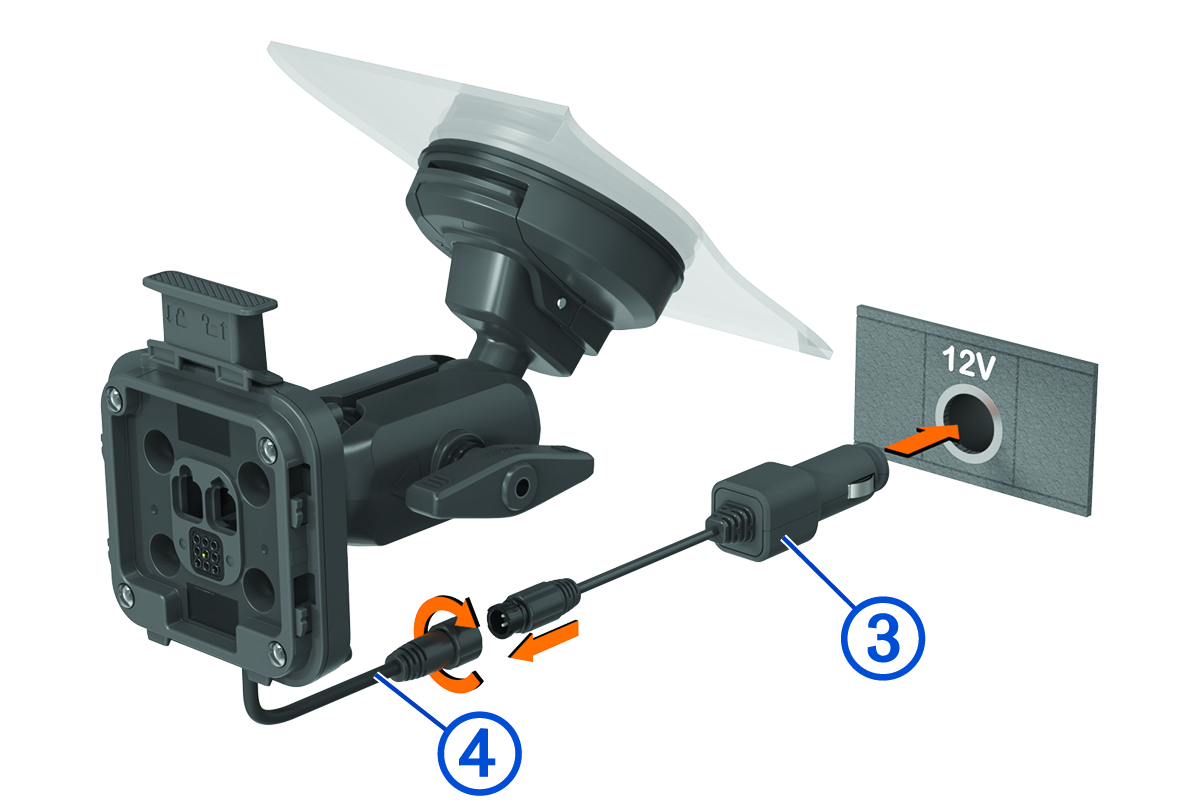

    Mount connecting to vehicle power with callouts
  6. Tighten the collar around the connected power cables.
  7. Plug the other end of the vehicle power cable into a power outlet in your vehicle.
  8. Place the device onto the magnetic mount.

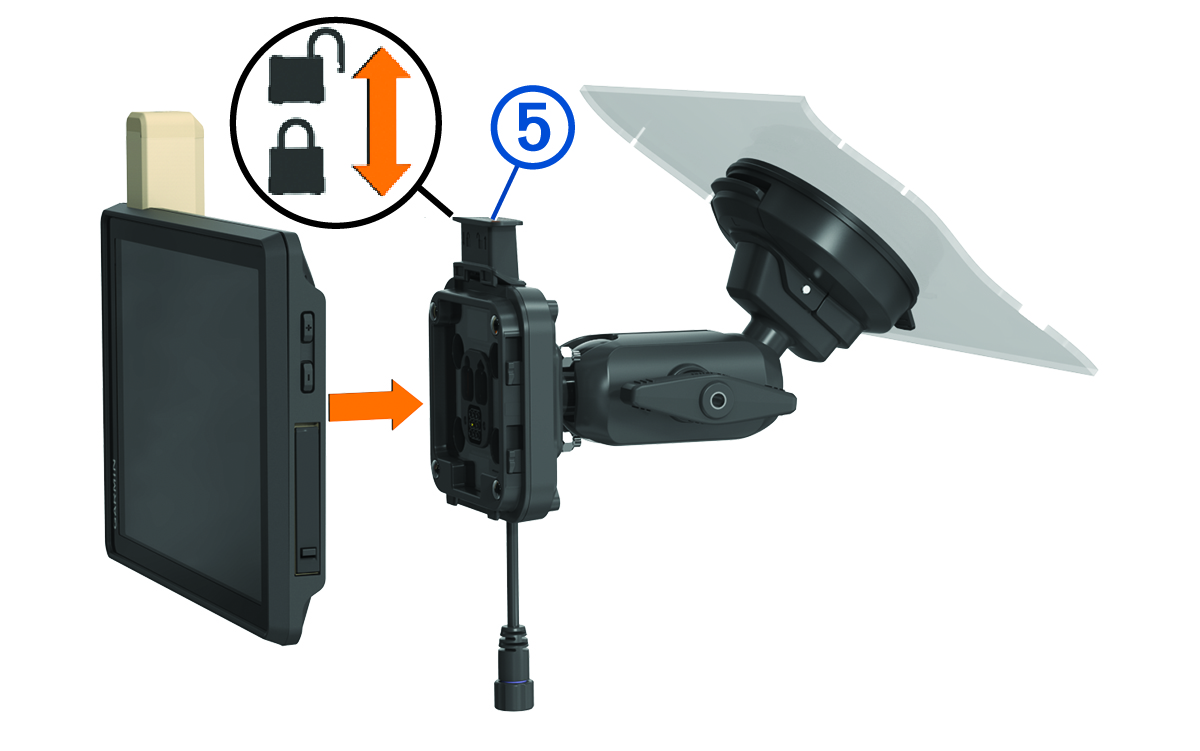

    Device connecting to the mount with a callout
  9. Push down the lock Callout number 5 to secure the device to the mount.
