Setting Up the Tire Pressure Sensors

Before you can set up the tire pressure sensors, you must have the battery and the numerical stickers included with each sensor. You also must have a compatible zūmo® device.

The sensors communicate wirelessly with your compatible zūmo device. You can monitor tire pressure and receive low-pressure alerts on your zūmo device.

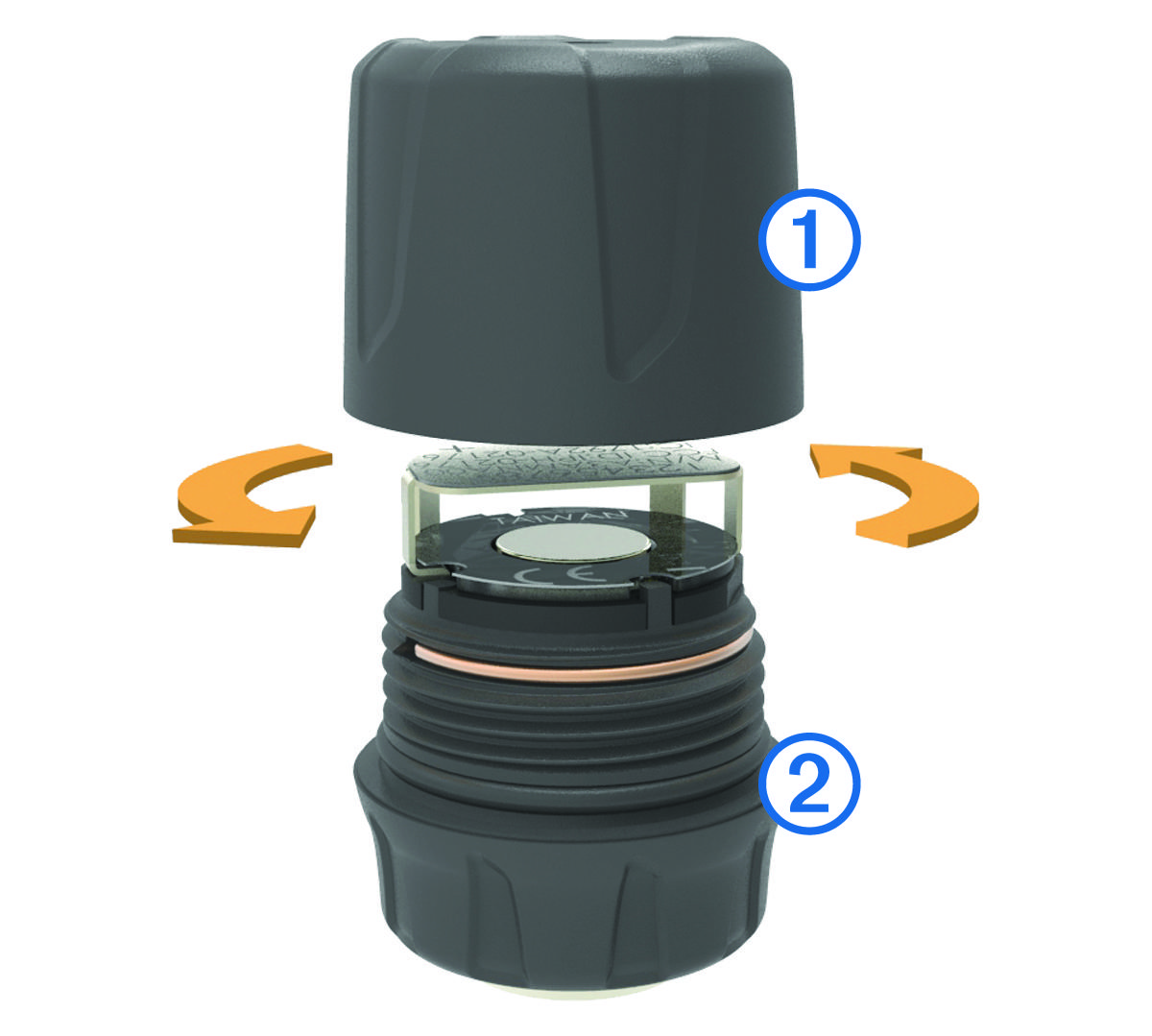

  1. Remove the cap Callout number one from the sensor Callout number two by rotating the cap counter-clockwise.


  2. If you have already installed the battery in the sensor, remove the battery.
  3. On your zūmo device, select Apps > Tire Pressure.
  4. Select a vehicle profile that matches the tire configuration of your vehicle.
  5. Bring the sensor close to the zūmo device.
  6. On your zūmo device, select the number next to the tire to which the sensor will be paired.

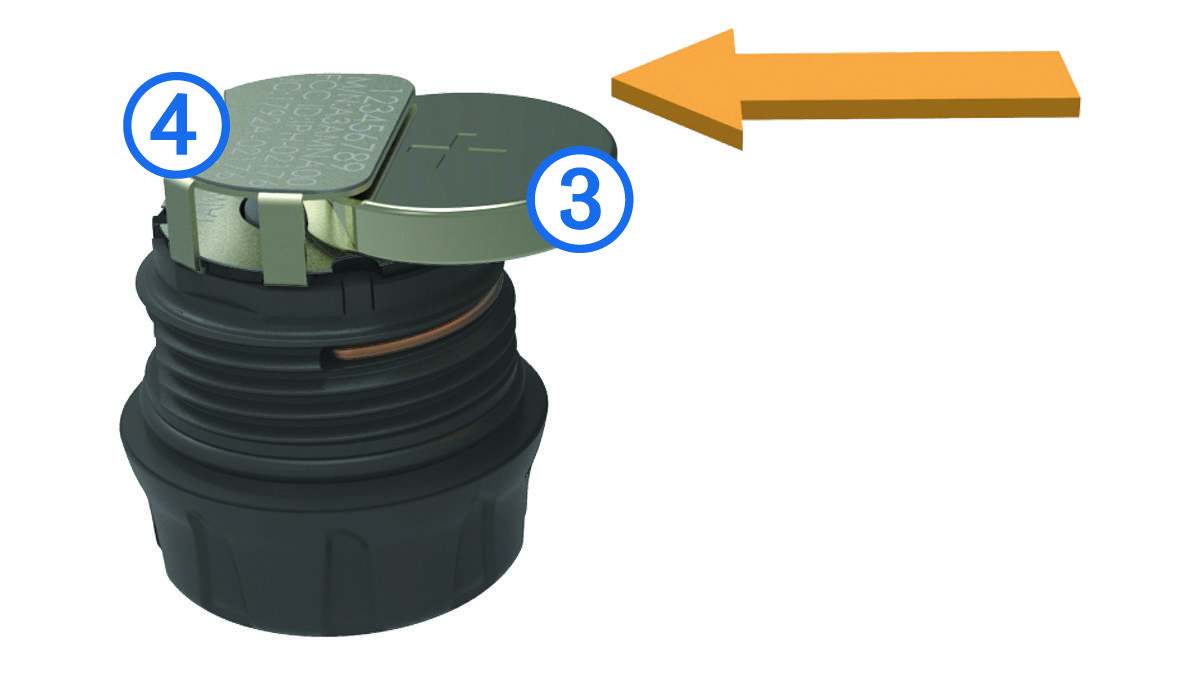

  7. Within 30 seconds, on the sensor, insert the battery Callout number three into the battery holder Callout number four with the positive side facing up.


    The zūmo device searches for the sensor and displays a confirmation message when the sensor pairs successfully.

    TIP: If the sensor does not pair successfully, you should remove the sensor battery, and repeat steps 6 and 7.
  8. Enter the recommended pressure for the tire.
  9. Enter the minimum pressure for the tire.

    The zūmo device triggers a low-pressure alert when the sensor reports a tire pressure reading lower than this value.

  10. Replace and fully tighten the cap on the sensor.
  11. On the sensor, affix the numerical sticker that corresponds to the tire number you selected in step 6.
  12. Repeat this procedure for each remaining sensor.
