Attaching the Base Plate to the Handlebar Base

Attaching the Base Plate to the Handlebar Base

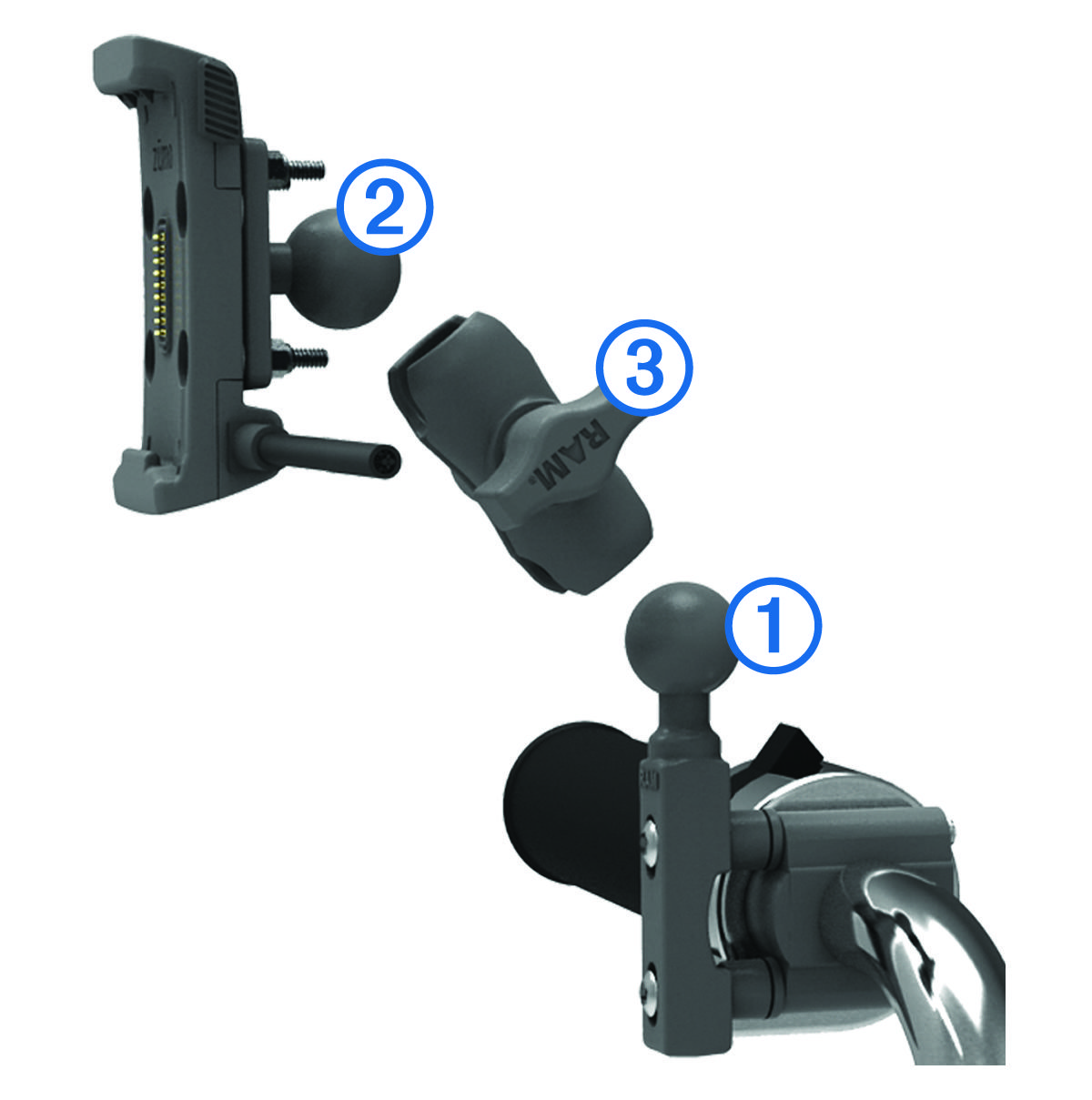

Align the ball of the handlebar base and the ball of the base plate with each end of the double-socket arm .
Insert each ball into the double-socket arm.
Tighten the knob slightly.
Adjust for optimal viewing and operation.
Tighten the knob to secure the mount.
