Device Overview

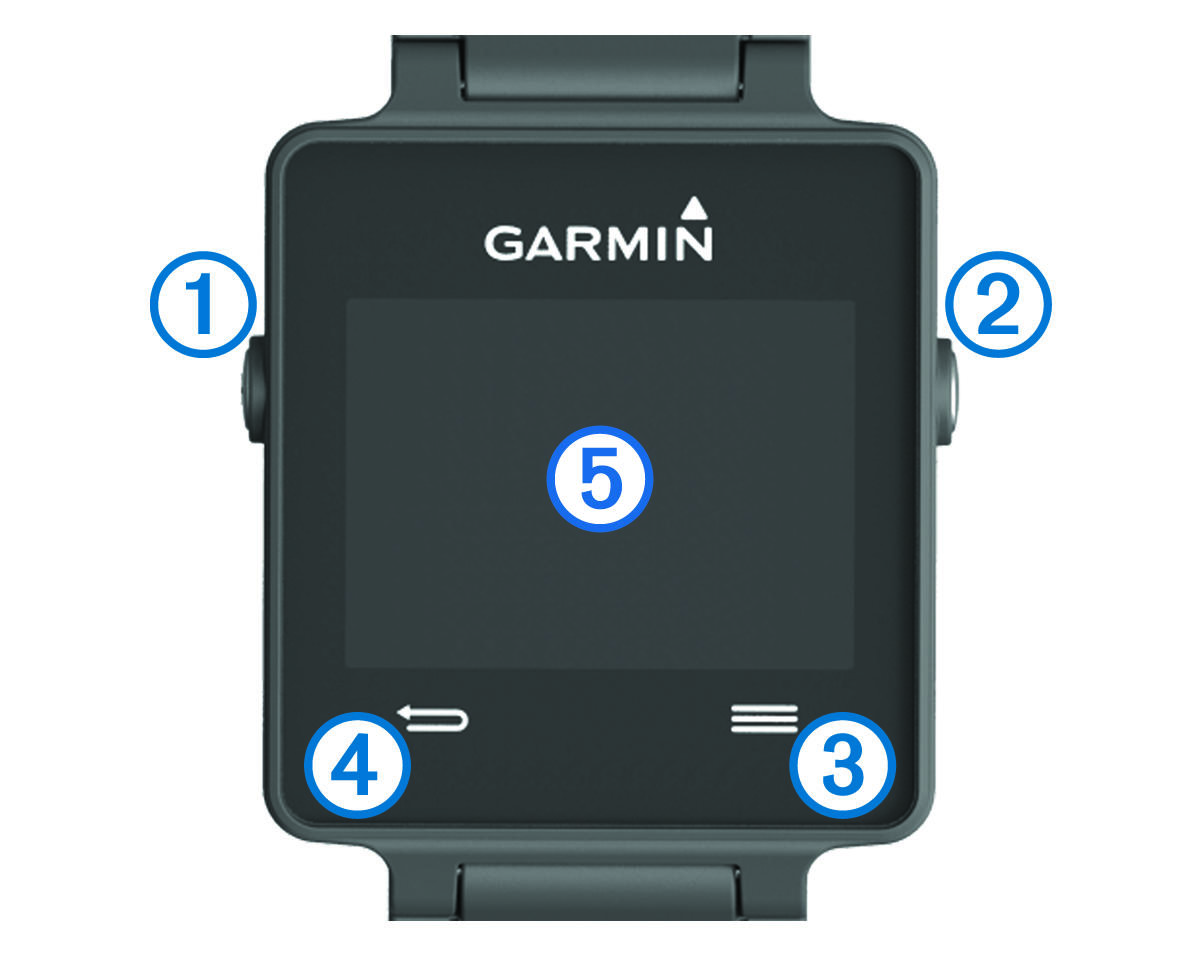

Front view of the device with callouts

Callout number one Power symbol

Select to turn the backlight on or off.

Hold to turn the device on or off.

Callout number two Action key

Select to start or stop activities or apps.

Callout number three Menu symbol

Select to open the menu from an activity or app.

Callout number four Back symbol

Select to return to the previous screen.

Select to mark a new lap.

Callout number five Touchscreen

Swipe left or right to scroll through menus, options, and settings.

Touch to select.
