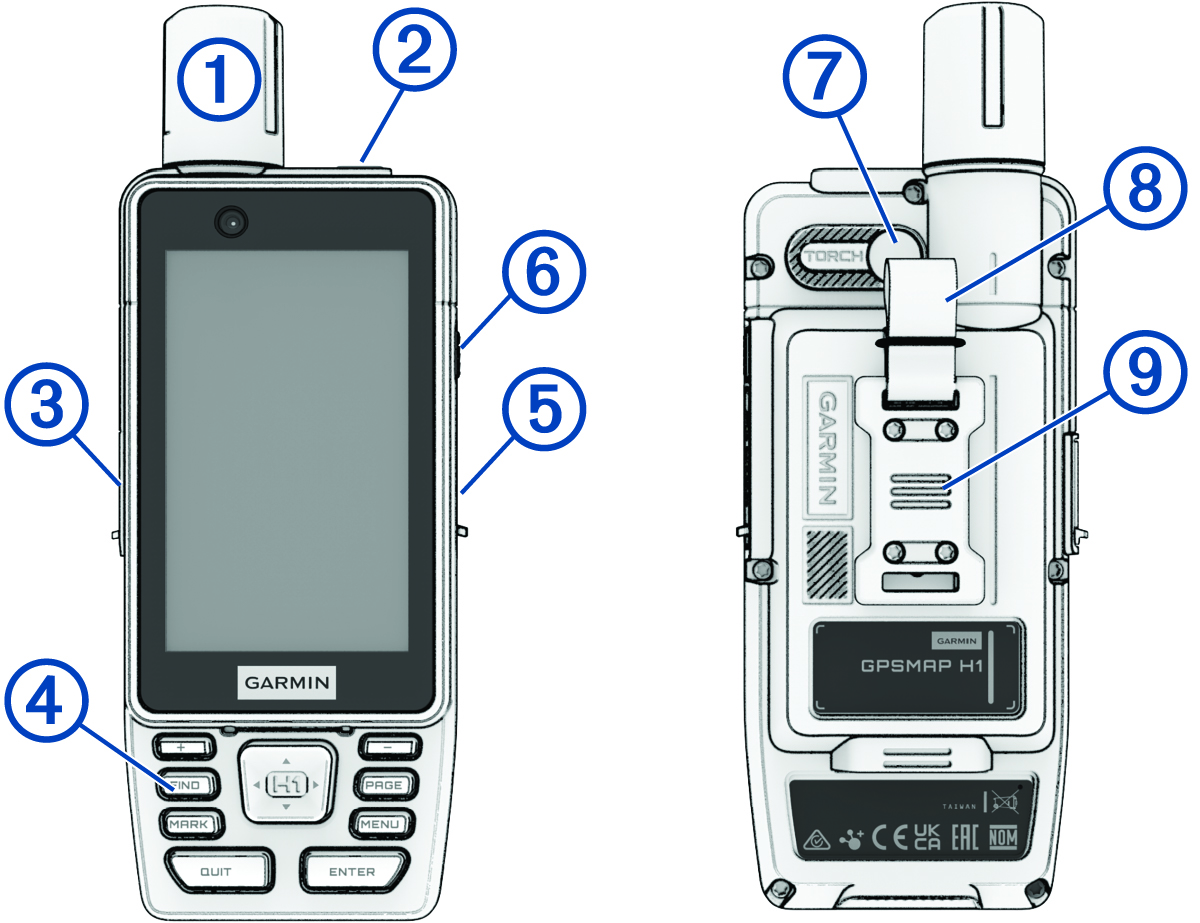

GPSMAP H1 Device Overview
|
|
GNSS antenna |
|---|---|
|
|
Press to enter sleep mode or wake the device. Hold to view the notification center and controls, and turn the device on or off (Notification Center and Controls). |
|
|
USB port under weather cap (Charging the GPSMAP Device). |
|
|
Buttons (Buttons). |
|
|
microSD® card slot under weather cap (Installing a Memory Card). |
|
|
Action button NOTE:
You can customize the shortcut function for this button during the initial setup, or from
the device settings menu
(Customizing the Action Button).
|
|
|
Flashlight |
|
|
Carabiner loop |
|
|
Spine mount NOTE:
Go to buy.garmin.com to purchase spine mount 2 optional
accessories.
|
