Attaching the Sensor to a Club

  1. Position the sensor on the shaft of your club below the grip.
    NOTE: When positioning the device, verify that it is located on a smooth part of the shaft.

    Close-up view of the device positioned on a club
  2. Align the guide line Callout number one parallel to the grooves on the club face Callout number two.

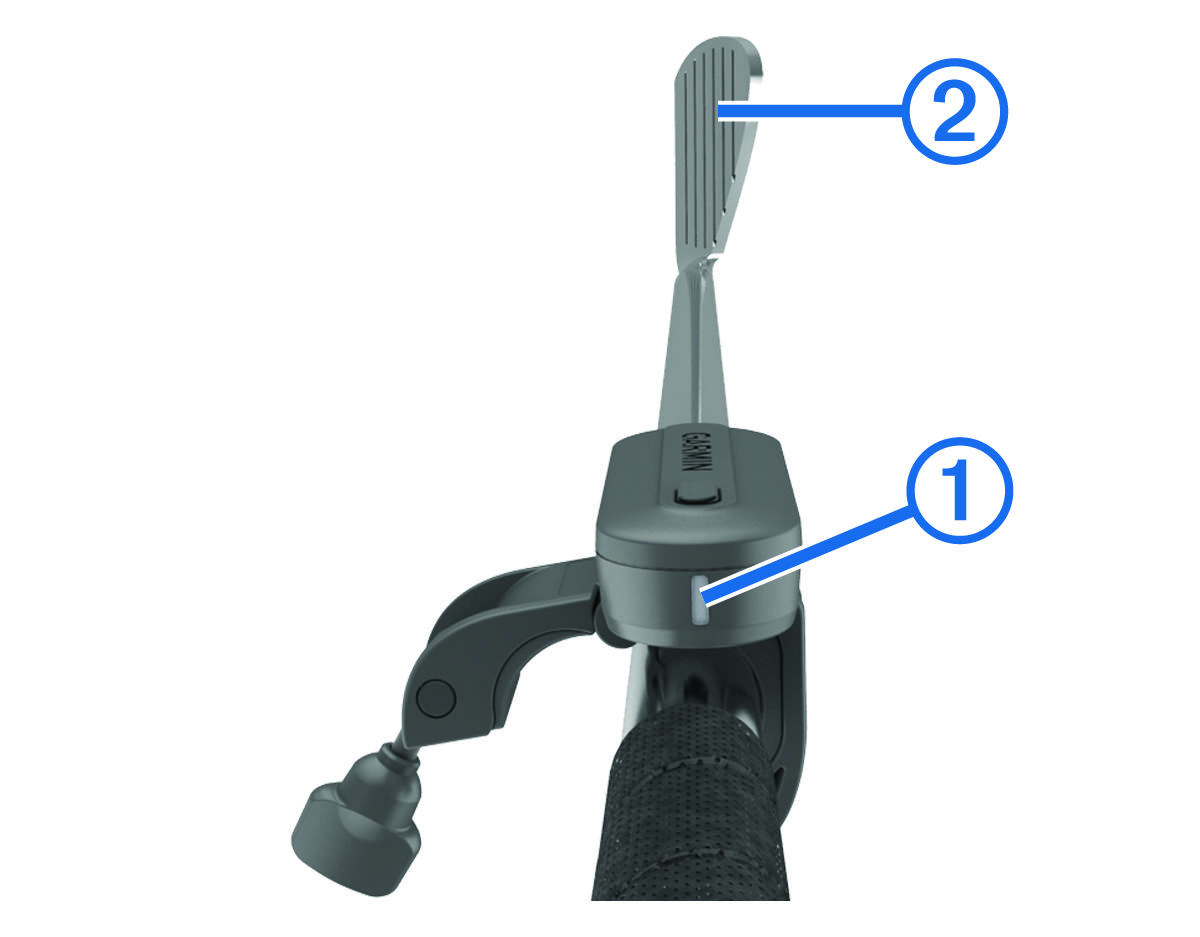

    Close-up view of the device on a club with callouts
  3. Close the clamp around the club.

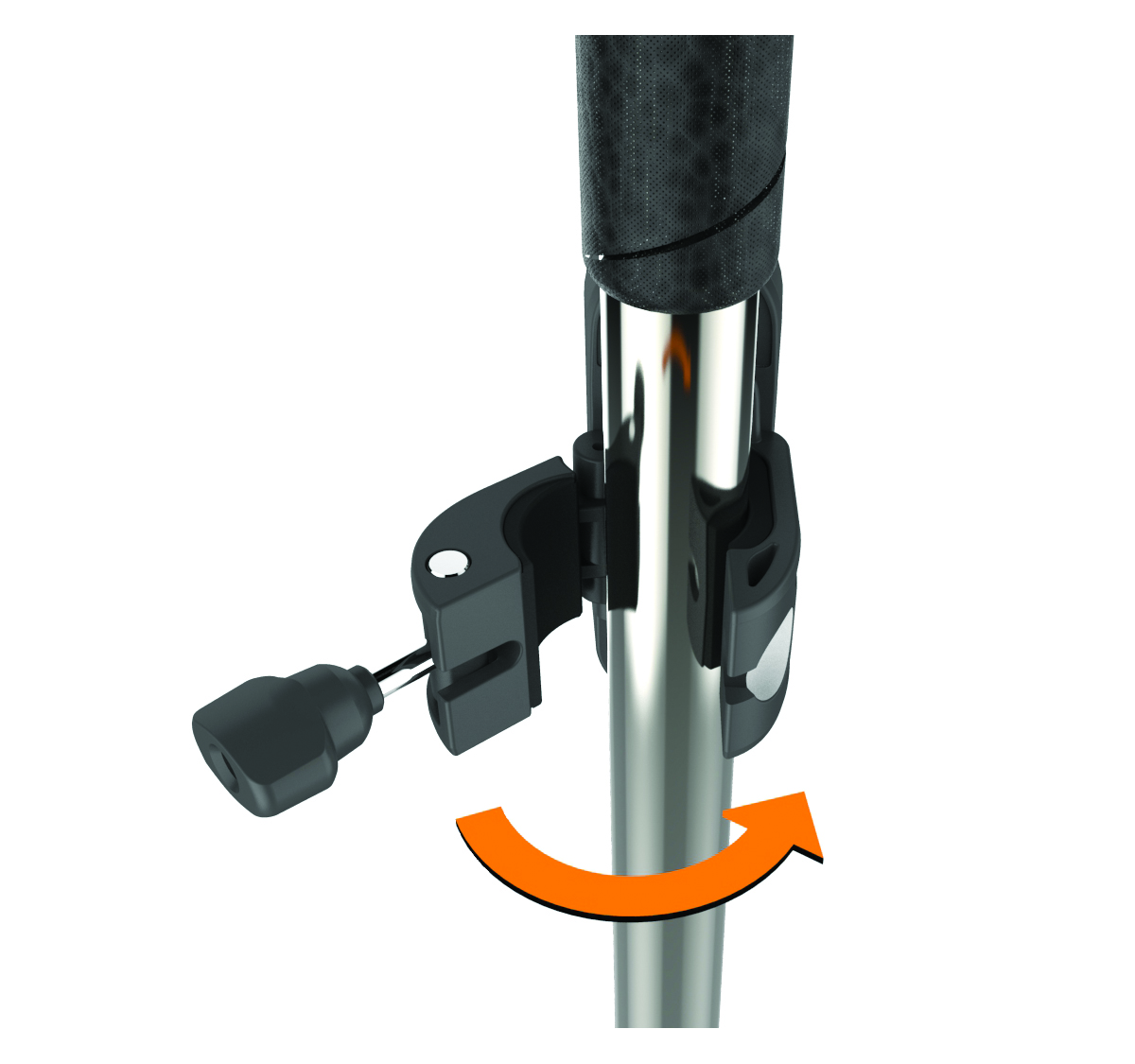

    Close-up view of the device clamping around a club
  4. Tighten the thumbscrew so the device does not move during use.
    NOTICE

    Do not overtighten the thumbscrew.

    NOTICE

    Do not attempt to reposition the device after tightening the thumbscrew. You must remove and reattach the device to adjust its position.
