Charging the Device

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

The device is powered by a built-in lithium-ion battery that you can charge using a USB port on your computer.

  1. Pull up the weather cap Callout number one from the USB port Callout number two.

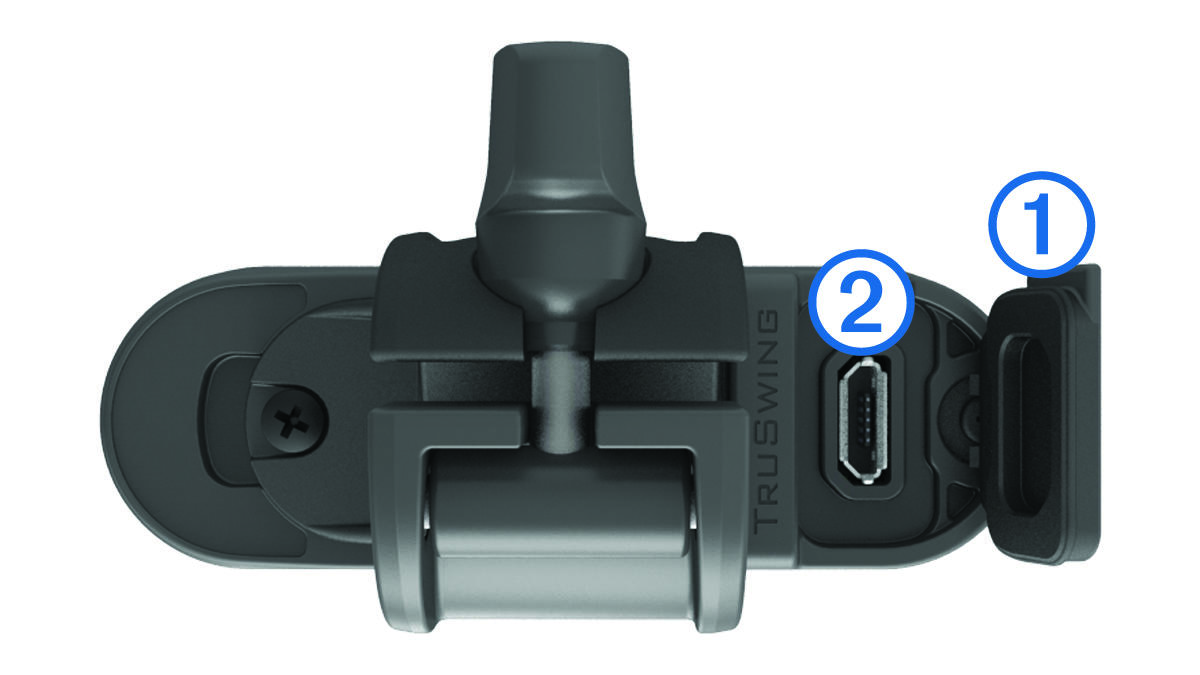

    Back view of the device with callouts
  2. Plug the small end of the USB cable into the USB port on the device.
  3. Plug the large end of the USB cable into the USB port on your computer.
  4. Charge the device completely.

    The red LED flashes when charging. When charging is complete, the red LED remains on.
