Horizontal Situation Indicator

WARNING

This watch is not intended to provide primary flight information and is to be used for supplemental purposes only.

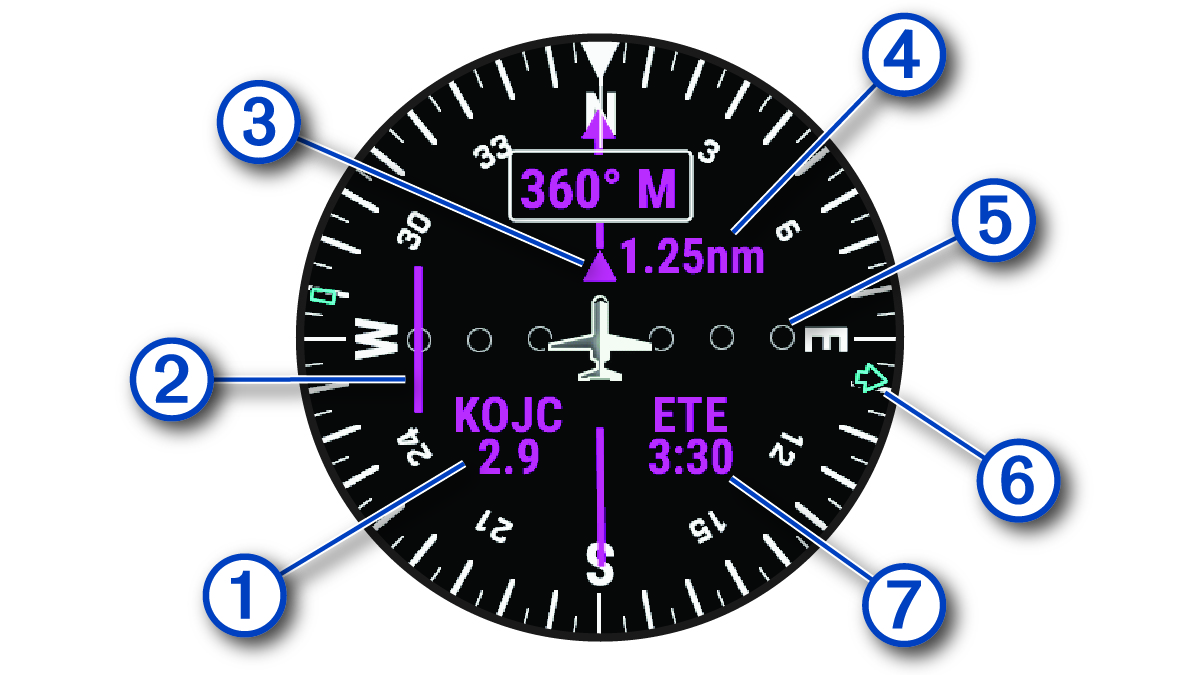

Horizontal situation indicator data

Callout number 1

Airport identifier and distance to the current destination.

Callout number 2

Course deviation indicator (CDI). Indicates the location of the desired course line in relation to your location.

Callout number 3

To-and-from indicator. Indicates whether you are headed toward or away from the waypoint.

Callout number 4

Configurable course deviation distance scale.

Callout number 5

Course deviation distance. The dots indicate your distance off course.

Callout number 6

Bearing to the nearest airport.

Callout number 7

Estimated time en route (ETE).
