Installing the Transducer on the Force Kraken LiveScope Mounting Bracket

Labels identifying the parts bags required for this procedure:

Bag label C Bag label H
NOTICE

You must secure the transducer cable to the shaft or other secure location during installation. Damage to the transducer cable wires or cable jacket can cause transducer failure.

  1. Remove any other transducer from the bottom mount of your Force® Kraken trolling motor.
  2. Using a flat prying tool, pry the adapter disc off of the bottom mount 1.

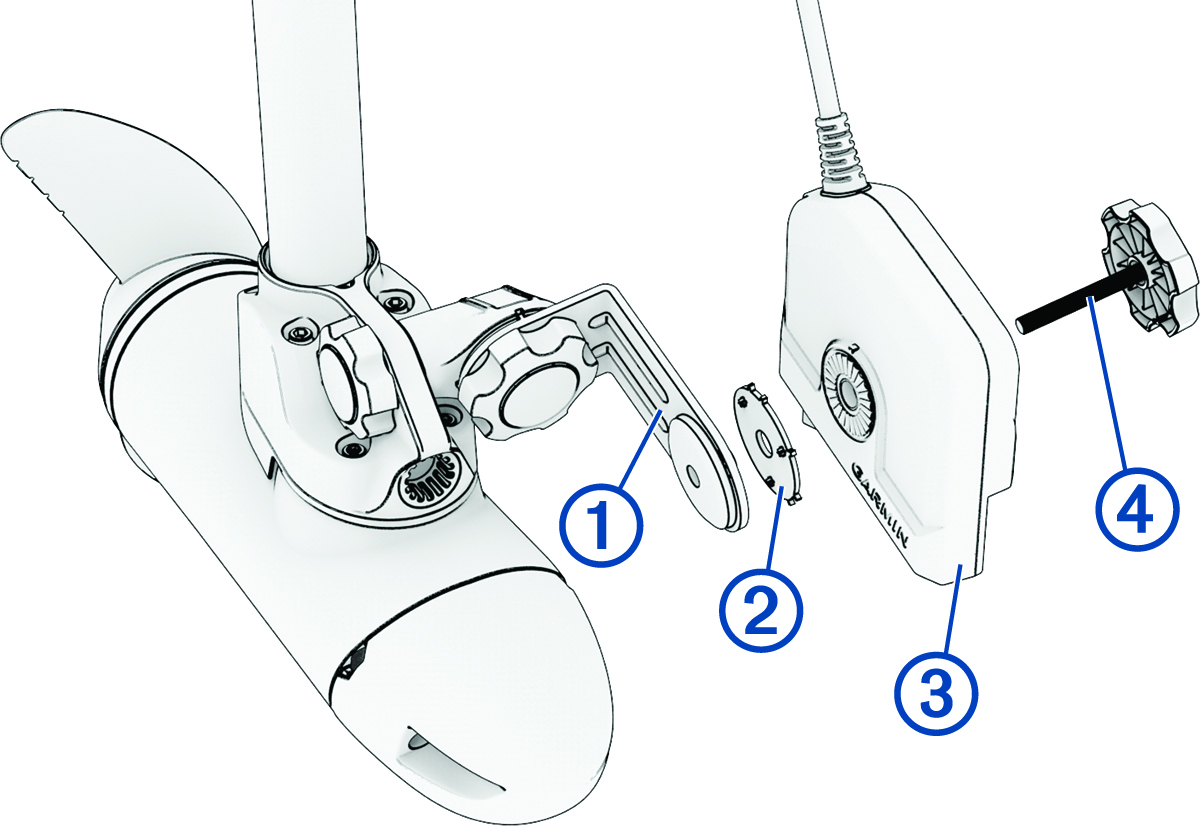

    LiveScope 2 being installed on the bottom of a Force Kraken trolling motor
  3. Remove the new adapter disc from parts bag Bag label H.
  4. Remove the adhesive liner from the back of the adapter disc.
  5. Align the pegs in the adapter disc 2 with the corresponding holes in the bottom mount , and press the disc onto the mount.
  6. Remove the knob from parts bag Bag label C.
  7. Attach the transducer 3 to the mount using the knob 4, and tighten the knob by hand.
    NOTE: You can secure the transducer to the mount using the included low-profile hardware instead of the knob if you do not plan to switch transducer modes frequently during use (Installing the Transducer Using Low Profile Mounting Hardware).
  8. Secure the transducer cable to the motor shaft or other secure location while taking these precautions.

    • You must route the cable so it does not come in contact with the propeller when the trolling motor is operating.

    • You should not route the cable close to electrical wires or other sources of electrical interference.

    • You must route the cable so it is not pinched when the trolling motor is deployed or stowed.

    NOTE: If necessary, you can connect an optional extension cable, available at buy.garmin.com or from your Garmin® dealer.
  9. Position the transducer to your preferred angle (Viewing Modes).
