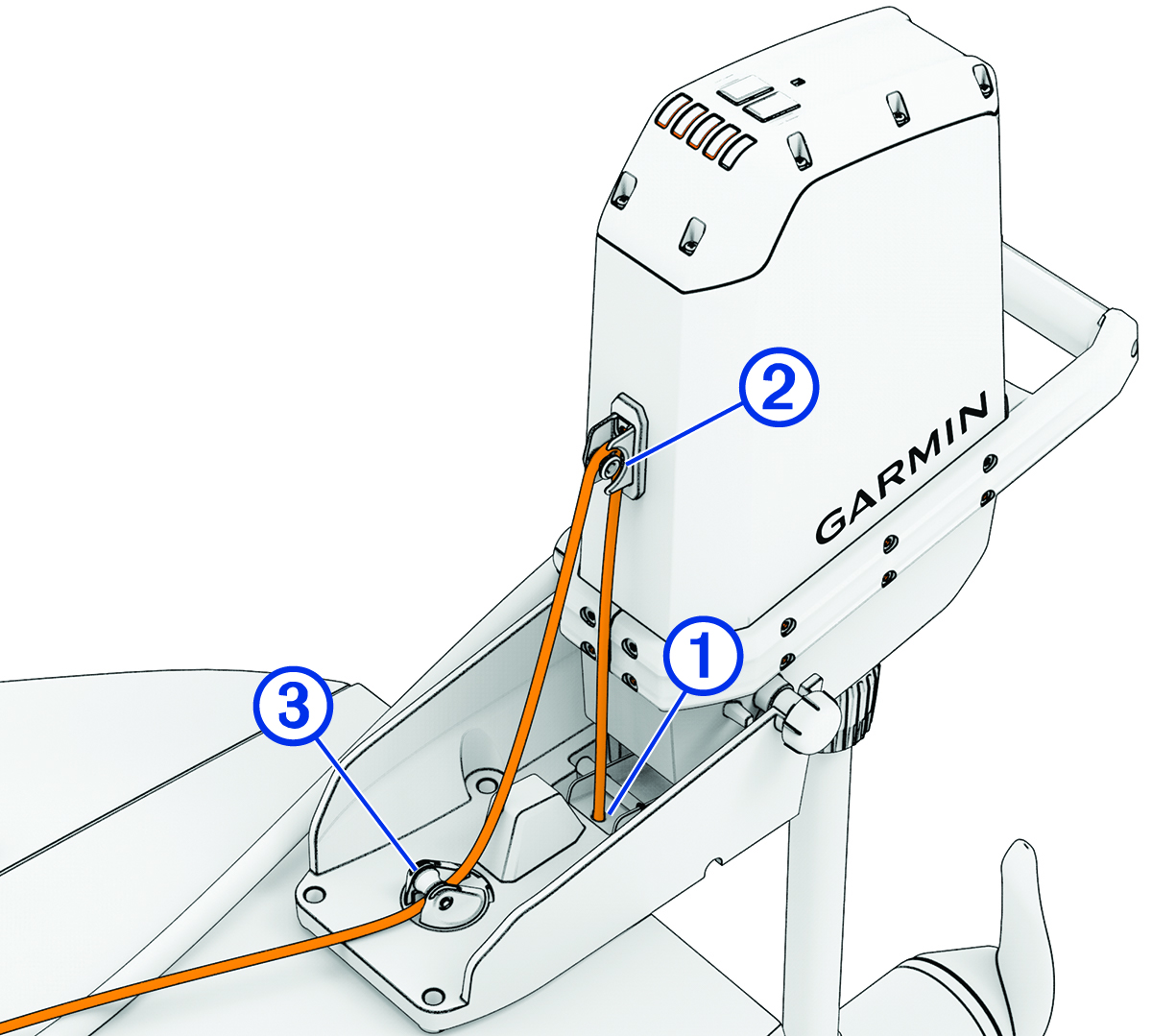

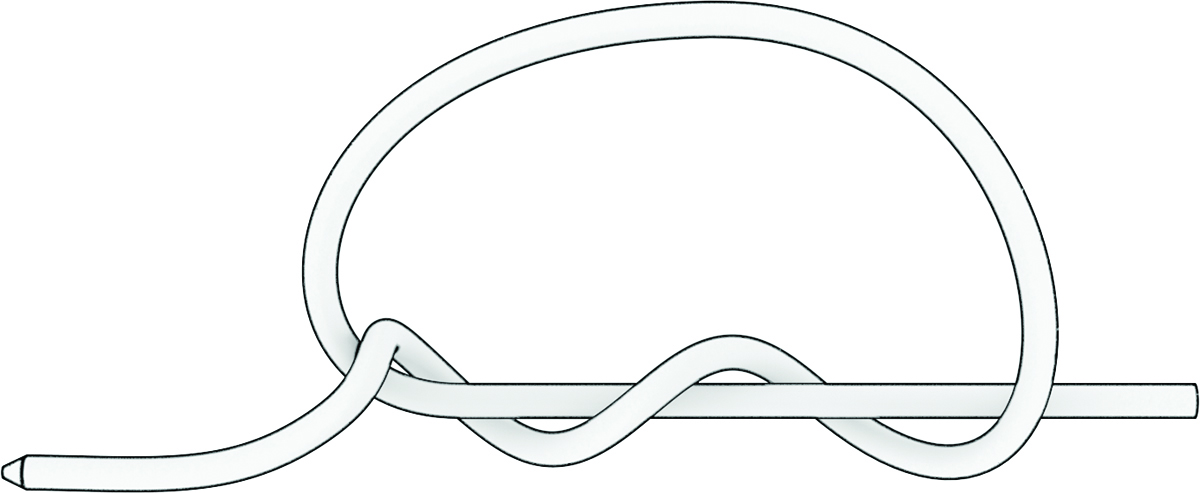

Replacing the Pull Rope Cut the worn or damaged rope and remove it from the motor and from the rope handle. Feed one end of the new rope through the metallic release latch in the mount 1. Tie the end of the new rope under the mount into a stopper knot to prevent the rope from pulling out through the release latch. Feed the rope up through the eyelet on the front of the motor 2. Guide the rope down and feed it through the swivel pulley on the mount 3. Route the rope through the pad eyes and the cleat. Install the rope handle on the new rope (Installing the Rope Handle). Child Topics:Installing the Rope HandleParent Topic: Maintenance Needs and ScheduleHomeMaintenance Needs and ScheduleReplacing the Pull Rope
