Installing the Seat Post Mount

NOTICE

You must install the mount surface perpendicular to the ground, to make sure the radar beam is horizontal. If the seat post mount directs the radar beam up or down, the effective range of the radar is reduced.

NOTE: The mount is packaged with bands to fit round seat posts between 25.4 mm (1 in.) and 35 mm (1 3/8 in.) in diameter, and most D-shaped and aero seat posts. Seat post compatibility may vary depending on your bike model.

The mount is packaged with rubber pads to fit round, D-shaped, or aero seat posts.

  1. Select the rubber pad 1 that best fits the shape of your seat post.

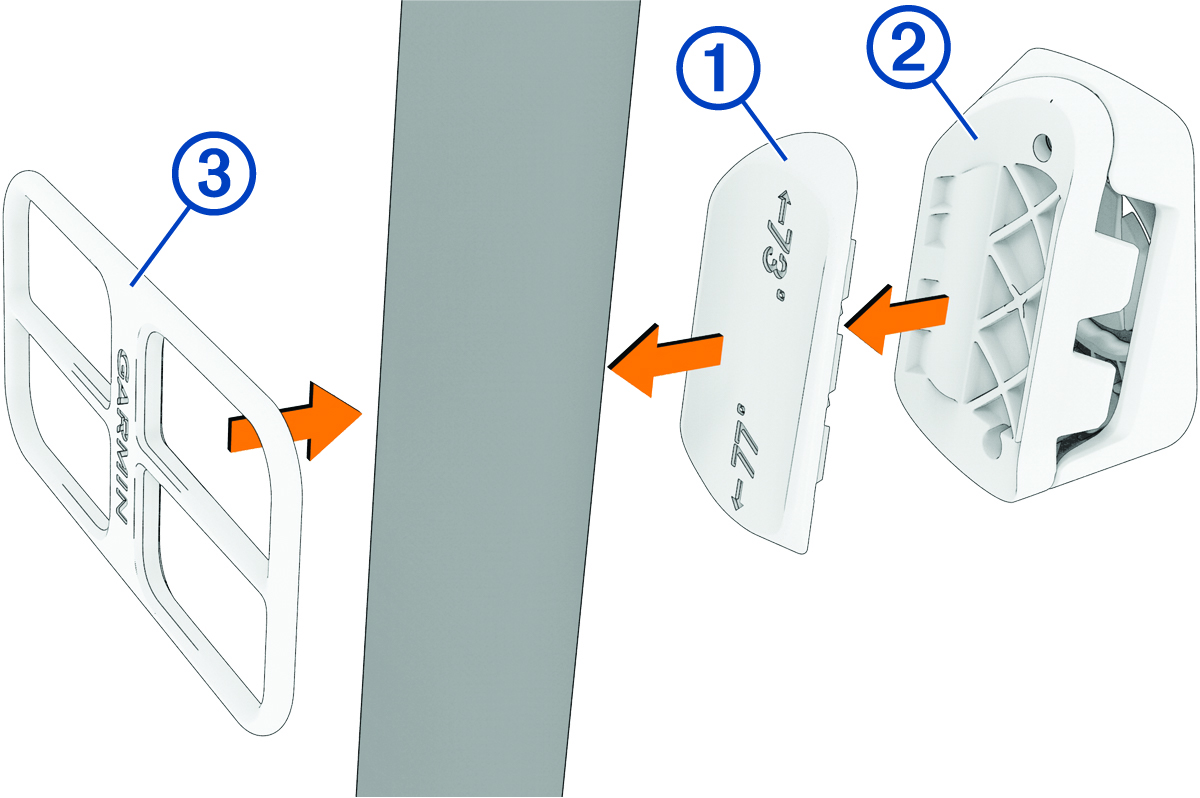

    Seat post mount with callouts
  2. Select an option to place the pad on the mount 2:

    • If one of the numbers marked on the pad matches the angle of your seat post, place the pad on the mount with the correct angle number up.

    • If neither of the numbers on the pad matches the angle of your seat post, or if you don't know the angle of your seat post, test both pad orientations, and select the best one.

    The combined mount and pad must result in the device being perpendicular to the road surface, to maximize your radar range and tail light visibility.

  3. Place the mount on the seat post.
  4. Secure the mount to the seat post using one of the included bands 3.
    NOTE: You can secure the mount using the included cable ties instead of the band.
