Removing the Power and Transducer Cables From the Mount

  1. Disconnect the motor from the power source.
  2. Remove the power-cable plug, if necessary.
    NOTE: If you installed the power-cable accessory plug sold by Garmin®, you should use a 3/32 in. hex bit or wrench and a #1 Phillips screwdriver to remove it.
  3. Using a #1 Phillips screwdriver, remove the single screw that secures the cable clamp Callout number 1 to the shroud.

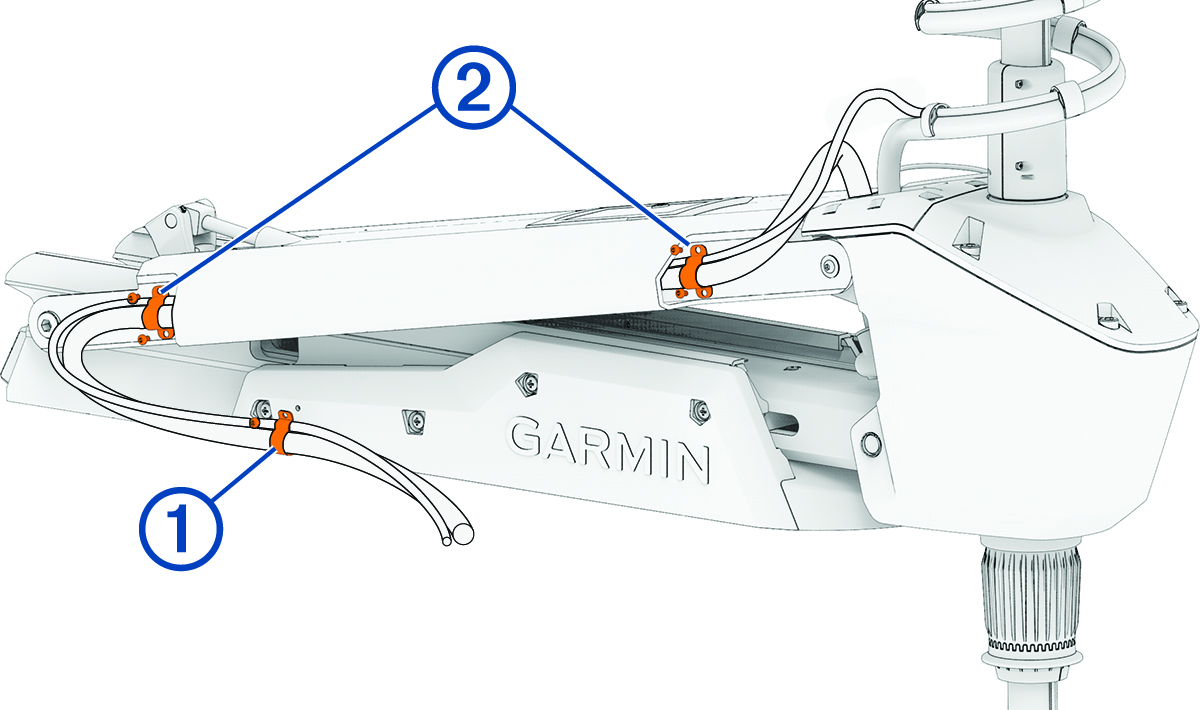

    Cable clamp locations with callouts
  4. Using a 3 mm hex bit or wrench, remove the screws that secure the two cable clamps Callout number 2 to the upper link.
  5. Pull the power cable out of the channel along the side of the mount.
  6. Pull the transducer cable out of the channel along the side of the mount.
