Disconnecting the Upper Link from the Steering System
Before you can disconnect the upper link of the mount, you must remove the power and transducer cables from the mount (Removing the Power and Transducer Cables From the Mount).
-

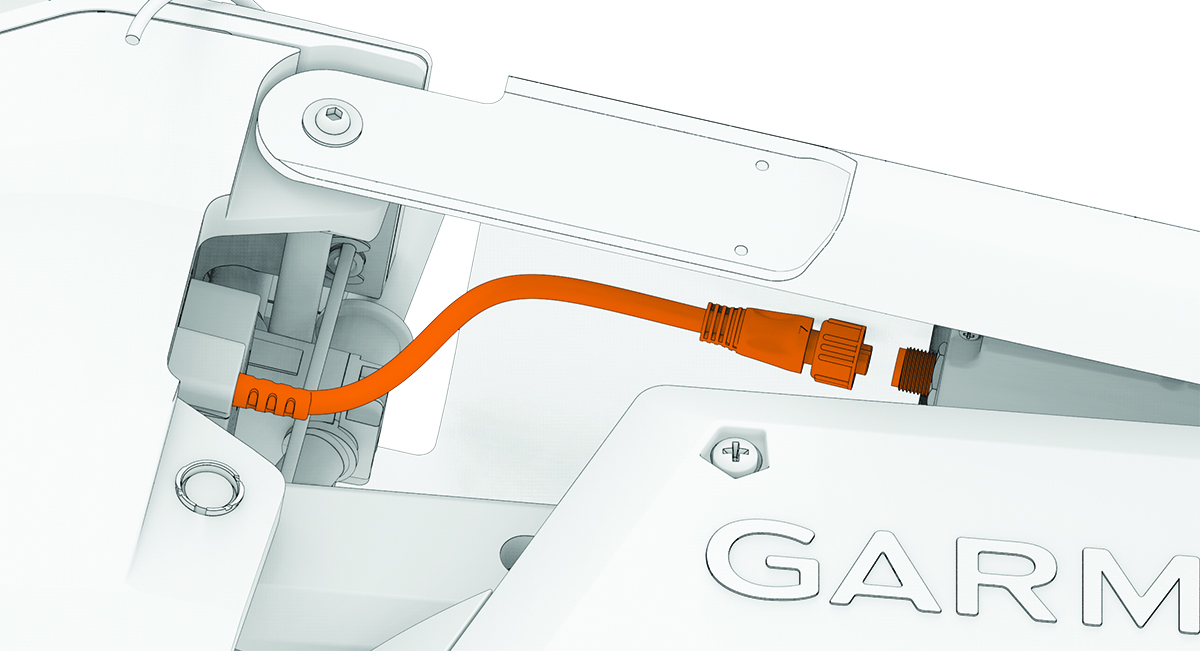

With the motor in the deployed position, disconnect the cable from the display panel on the upper link of the mount.
-

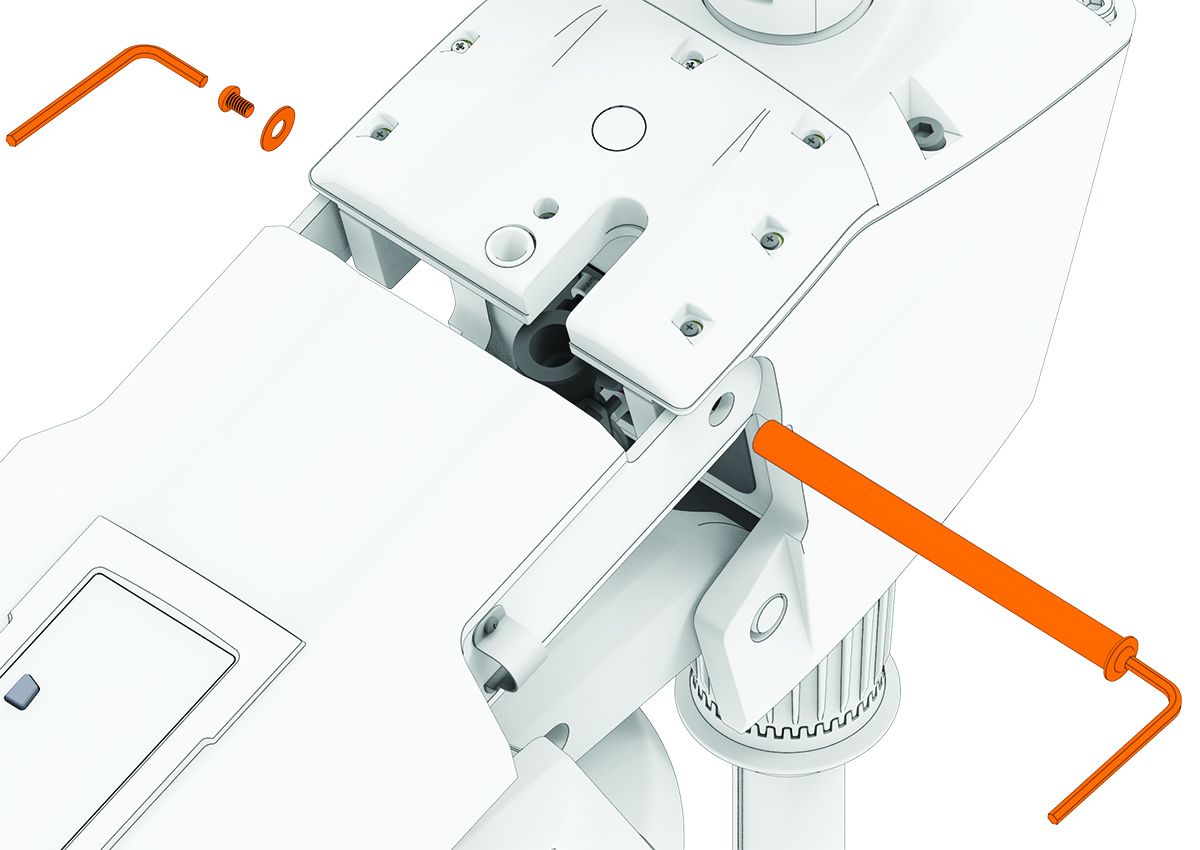

Using a 4 mm hex bit or wrench, remove a screw and washer from one side of the upper pin on the steering system.
TIP: You should use another 4 mm hex wrench on the other end of the pin to prevent it rotating while you remove the screw.
