Removing the Pull Cable

Before you can remove the pull cable, you must remove the pull cable handle (Removing the Pull Cable Handle).

  1. Locate the access hole on the lower link, near the depth adjustment collar.
  2. Using needle-nose pliers, remove the R-pin that secures the pull cable to the locking mechanism.

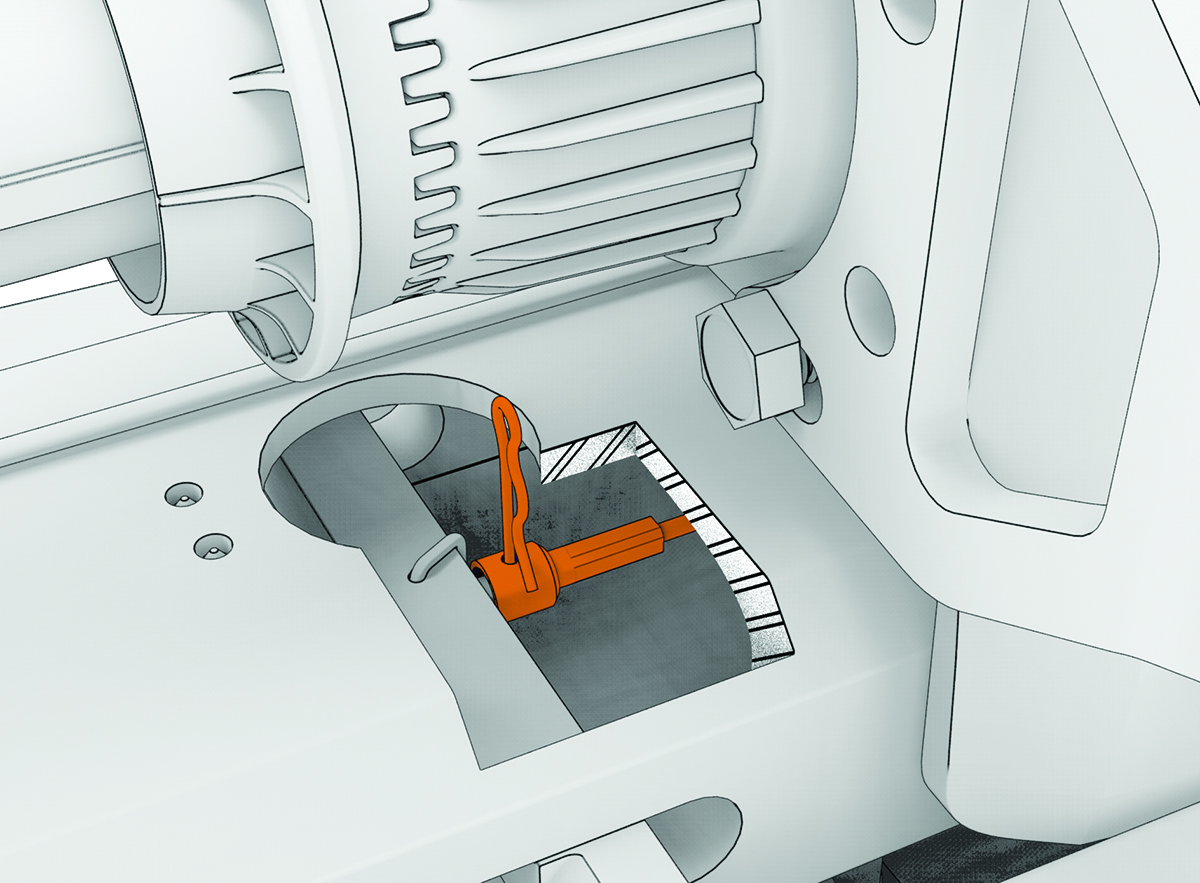

    R-pin location
  3. Remove the end of the pull cable through the access hole, and pull to remove the rest of the cable from the steering system housing.
