Connecting the Device to External Power

NOTICE

To prevent corrosion, thoroughly dry the USB port, the serial port, the weather cap, and the surrounding area before connecting to a computer or external cable.

Before you can connect the device to external power using a USB cable, you must change the serial interface setting to Garmin Spanner (Serial Interface Settings).

  1. Lift the weather cap Callout number one.

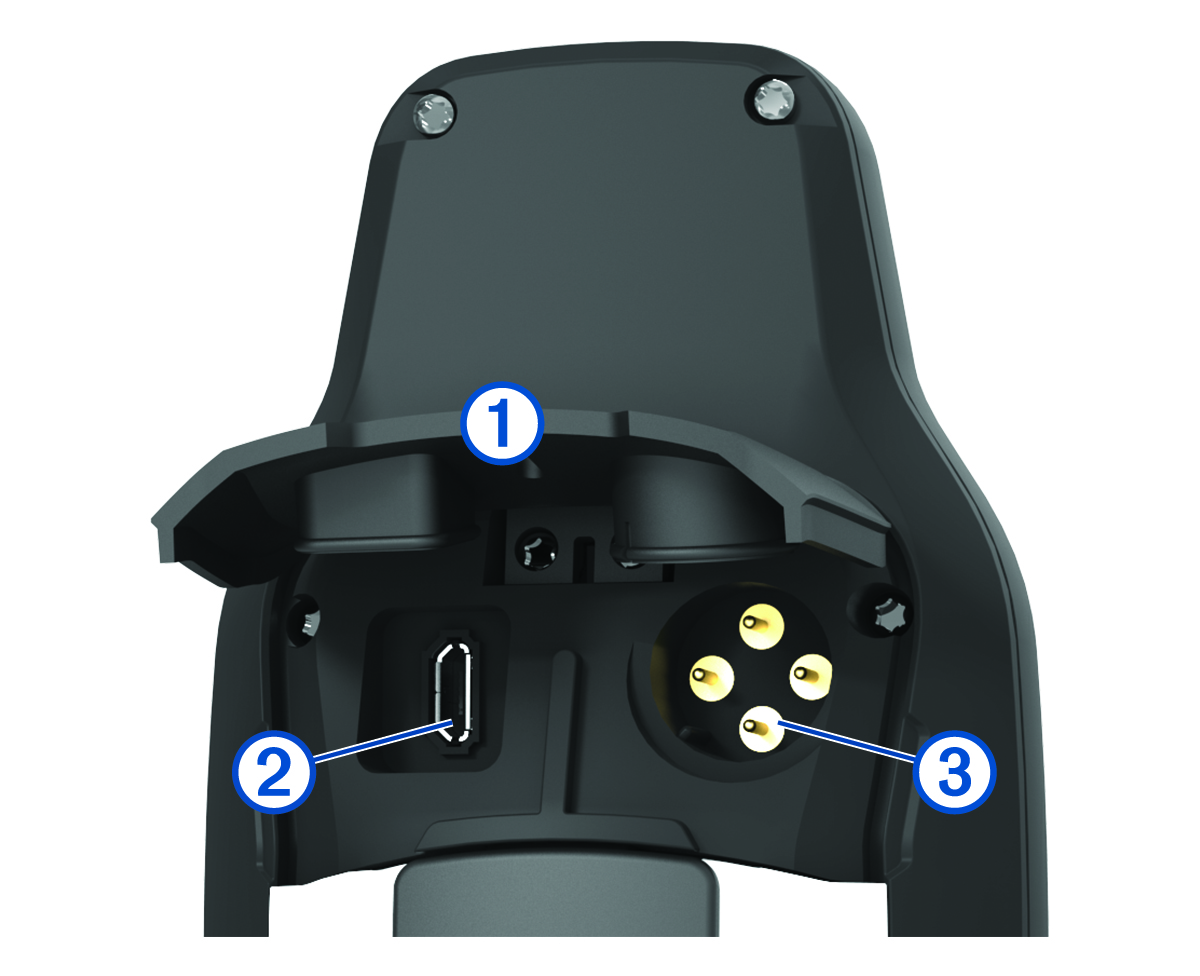

    Close-up view of the weather cap, serial port, and usb port with glyphs
  2. Select an option:
    • To connect to a compatible 5 V AC power adapter (sold separately), connect the small end of the included USB cable to the USB port Callout number two on the device.

    • To connect to a NMEA® 0183 device, connect a 12 V serial/data power cable (sold separately) to the serial port Callout number three on the device.

    Optional accessories are available at buy.garmin.com or from your Garmin® dealer.
