Removing the Transducer
Before you can remove the transducer, you must remove the propeller drive motor (Removing the Propeller Drive Motor).
-

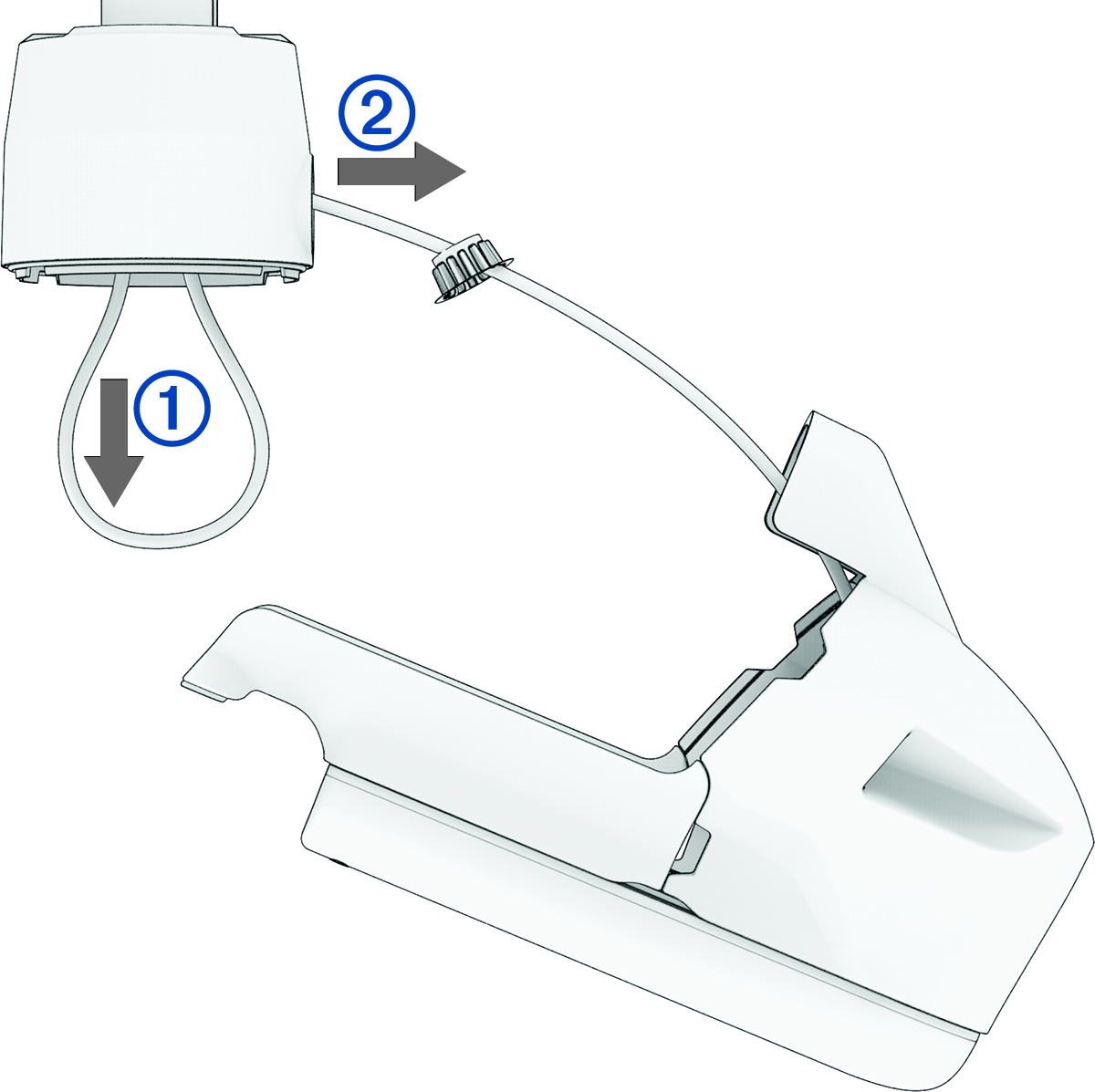

Carefully pull the transducer cable straight down
through the bottom of the shaft until it is completely removed from the shaft.
-
After you pull the transducer cable through the shaft completely, pull it through the hole in the front of the shaft base
, along with the rubber cable gland and the recessed nut.
When replacing the transducer, you should dispose of the cable gland and recessed nut. A new cable gland and recessed nut are provided in the transducer replacement kit.
-

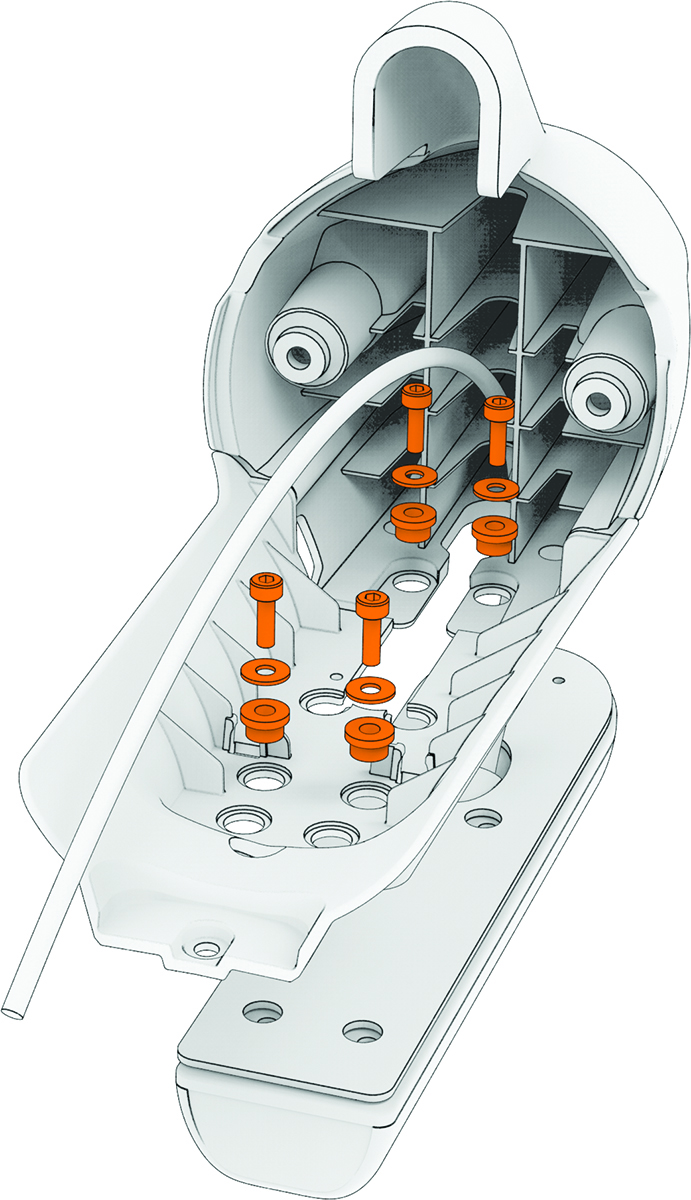

Using a 3 mm hex bit or driver, remove the screws that secure the transducer to the nose cone.
When replacing the transducer, you should dispose of these screws, washers and bushings. New parts are included with the transducer replacement kit.
