Bail Mounting the Device

NOTICE

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.

  1. Select the mounting hardware appropriate for your mounting surface and for the bail-mount bracket.
  2. Using the bail-mount bracket Callout number 1 as a template, mark the pilot holes Callout number 2.

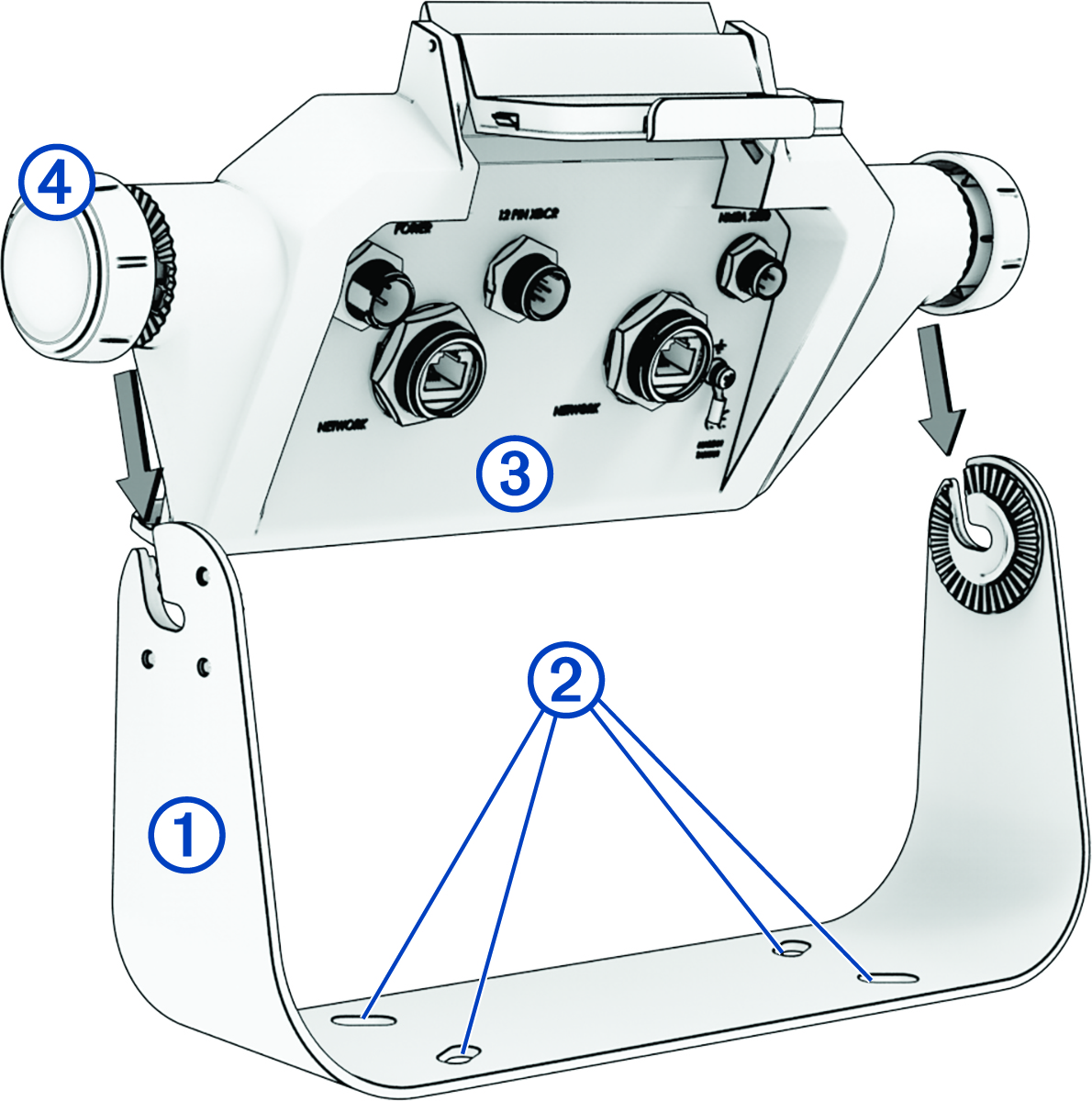

    Cradle and bail mount installation with callouts
  3. Using a drill bit appropriate for the mounting hardware, drill the four pilot holes.
  4. Using the selected mounting hardware, secure the bail-mount bracket to the mounting surface.
  5. Place the cradle Callout number 3 into the bail-mount bracket, and tighten the bail-mount knobs Callout number 4.
  6. Connect all necessary cables to the cradle (Connector View), and spin the locking rings clockwise to lock the cables to the cradle.
    NOTICE

    To prevent corrosion of the metal contacts, cover unused connectors with the attached weather caps.
