Device Keys

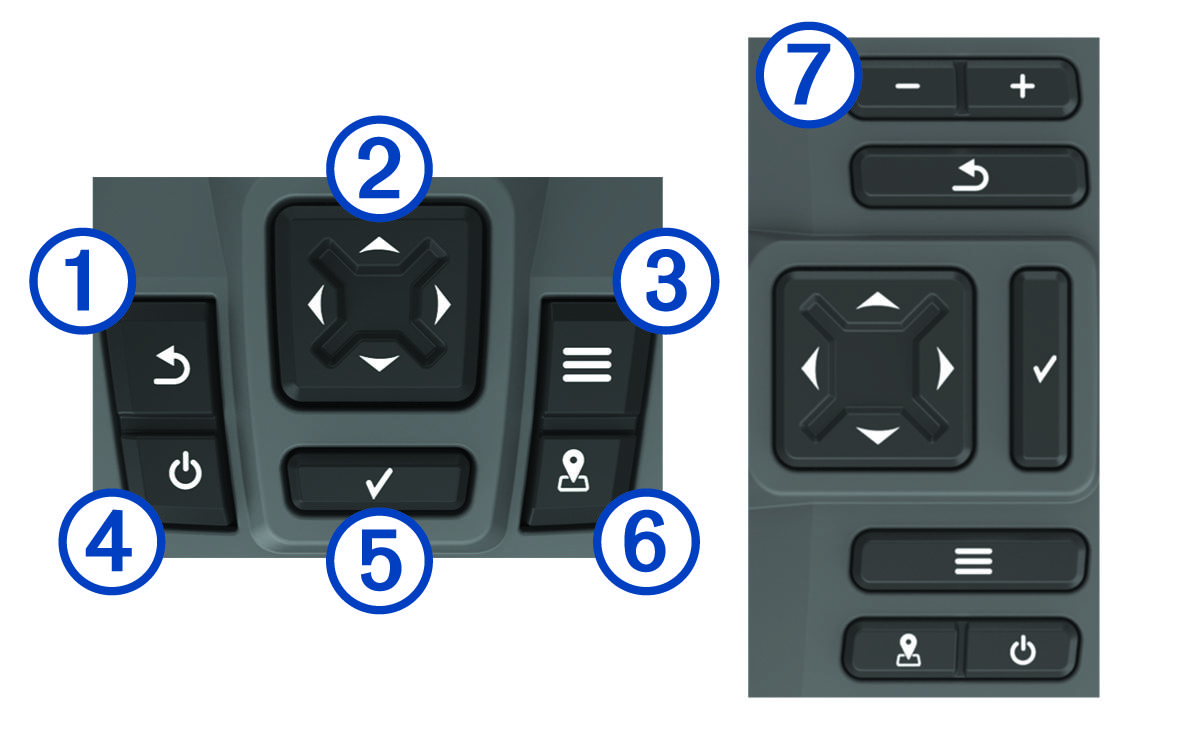

Device keys with callouts

Item

Icon

Description

Callout number one

Back button

Returns to the previous screen.

Returns to the home screen when held.

Callout number two

Arrow buttons

Scrolls, highlights options, and moves the cursor.

Zooms in and out of a view. (Not available on all models.)

Callout number three

Menu button

Closes a menu, when applicable.

Opens a menu of options for the page, when applicable.

Callout number four

Power button

Turns on and off the device when held.

Performs one or more of these actions when quickly pressed:
  • Adjusts the backlight

  • Adjusts the color mode

  • Enables and disables sonar

Callout number five

Select button

Acknowledges messages and selects options.

Callout number six

Save waypoint button

Saves the present location as a waypoint.

Callout number seven

Minus button

Plus button

Zooms out of a view. (Not available on all models.)

Zooms in to a view. (Not available on all models.)

NOTICE

Before turning on the device, you must firmly press the connectors into the appropriate holes in the device. If the cables are not pressed far enough into the device, the device appears to lose power or stop working.
