Device Overview

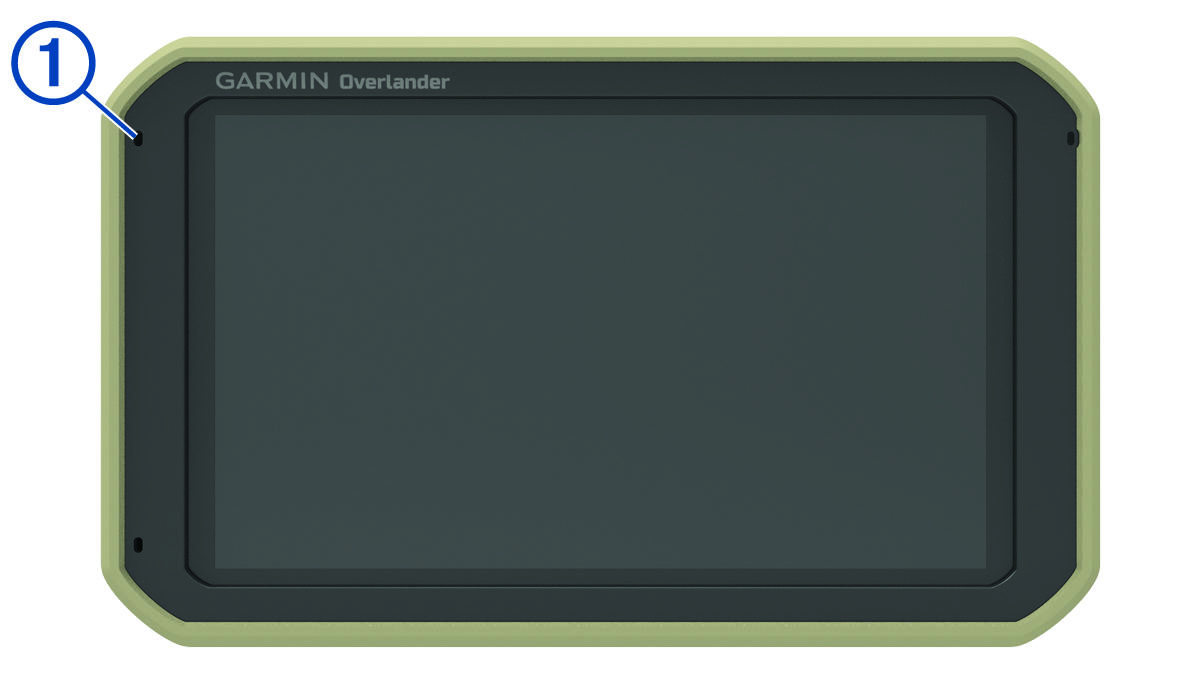

Front view of the device with a callout

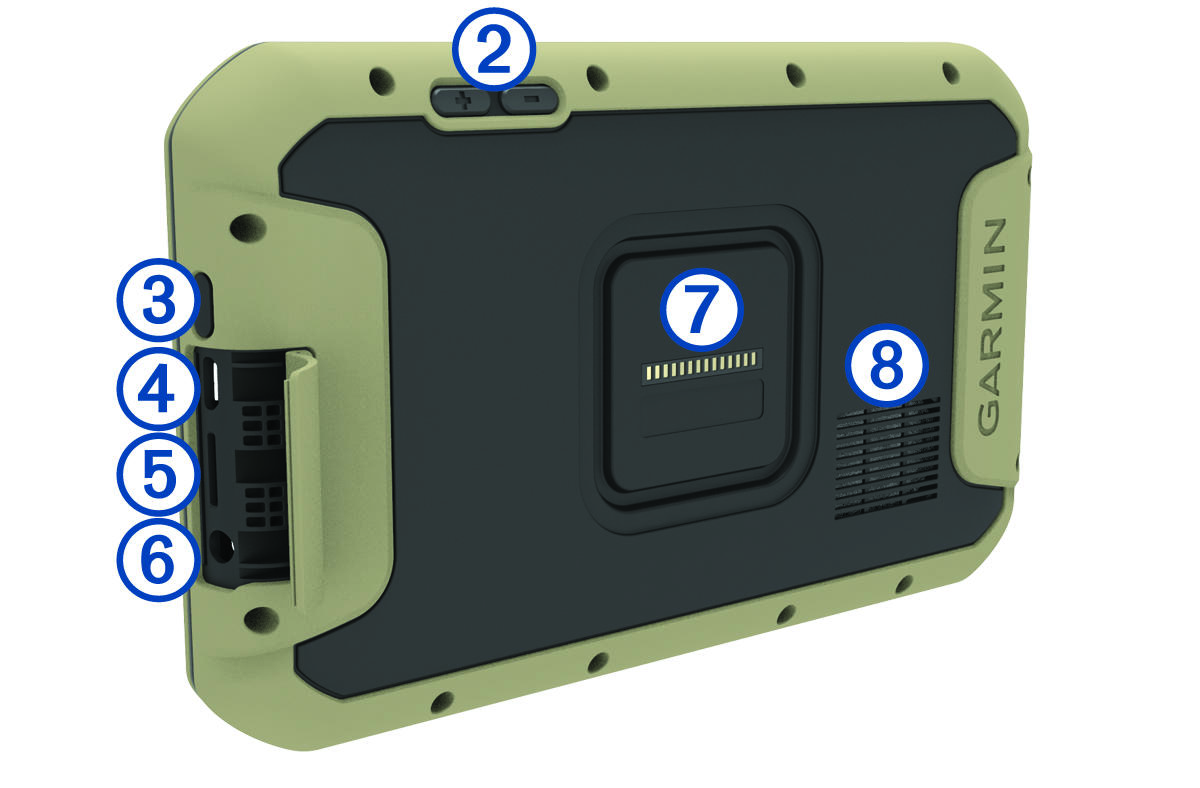

Back view of the device with callouts

Callout number one

Microphone for hands-free calling

Callout number two

Volume control

Callout number three

Power key

Callout number four

Micro USB power and data port

Callout number five

Map and data memory card slot

Callout number six

3.5mm audio jack

Callout number seven

Magnetic mount interface with 14 pin connector

Callout number eight

Speaker
